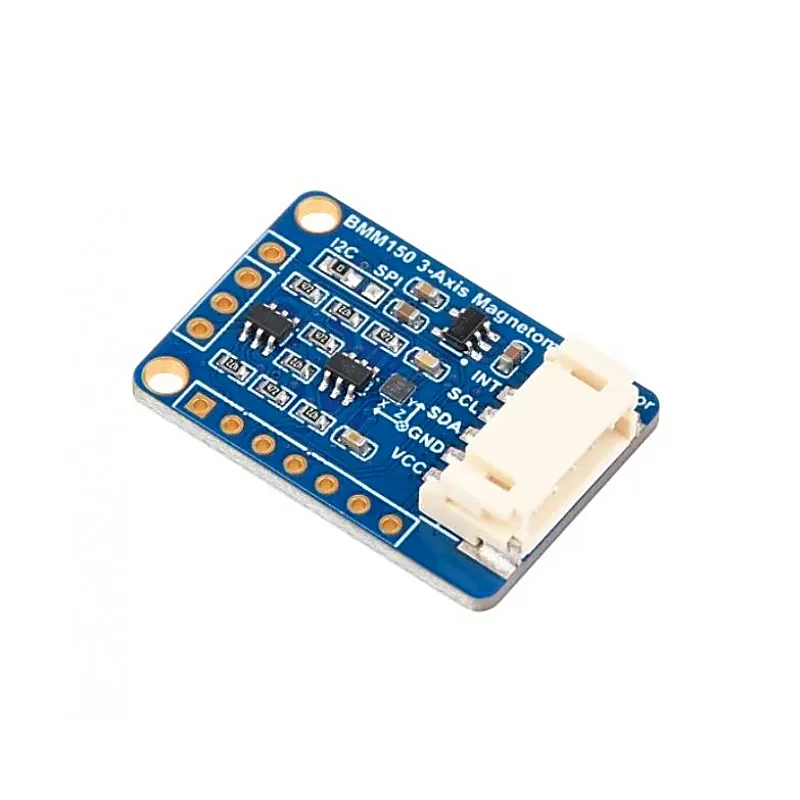

BMM150 3-Axis Magnetometer Sensor, Digital Compass Sensor, Magnetic Field Measurement
BMM150 3-Axis Magnetometer Sensor, Digital Compass Sensor, Magnetic Field Measurement
The BMM150 is a 3-axis magnetometer sensor, with the features of ultra-small form factor, low power consumption, and low noise. This digital high-performance sensor is ideal for a variety of altitude-tracking applications. Supports both I2C / SPI interfaces, compatible with 3.3V/5V voltage levels. I
+ 18% GST (added at checkout)
In stock — 7 units ready
- Support I2C/SPI interface communication, I2C interface by default.
- Onboard voltage translator, compatible with 3.3V/5V operating voltage.
- Provide online user manuals and resources (Raspberry/Arduino/pico demo and manual).
- Operating voltage: 5V/3.3V
- Communication interface: I2C/SPI
- Resolution: 0.3μT
- Linearity: <1%FS
- Gain error: ±2%
- Temperature drift sensitivity: ±0.01%/K
- Zero point drift: ±40μT（25℃）
- Measuring range: ±1300μT (x,y-axis), ±2500μT (z-axis)
- Data output rate: 10Hz（normal mode: Regular preset）
- Operating temperature: -40~85℃
- Dimensions: 29mm × 20mm
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The BMM150 is a 3-axis magnetometer sensor, with the features of ultra-small form factor, low power consumption, and low noise. This digital high-performance sensor is ideal for a variety of altitude-tracking applications. Supports both I2C / SPI interfaces, compatible with 3.3V/5V voltage levels. It can be easily integrated into projects such as GPS modules, wearables devices, audible devices, and drones, suitable for applications such as accurate altimeters, environment monitoring, and IoT projects. Features:- Support I2C/SPI interface communication, I2C interface by default. Onboard voltage translator, compatible with 3.3V/5V operating voltage. Provide online user manuals and resources (Raspberry/Arduino/pico demo and manual). Specifications:- Operating voltage: 5V/3.3V Communication interface: I2C/SPI Resolution: 0.3μT Linearity: <1%FS Gain error: ±2% Temperature drift sensitivity: ±0.01%/K Zero point drift: ±40μT（25℃） Measuring range: ±1300μT (x,y-axis), ±2500μT (z-axis) Data output rate: 10Hz（normal mode: Regular preset） Operating temperature: -40~85℃ Dimensions: 29mm × 20mm Package Includes:- 1 x BMM150 3-Axis Magnetometer Sensor, Digital Compass Sensor, Magnetic Field Measurement
