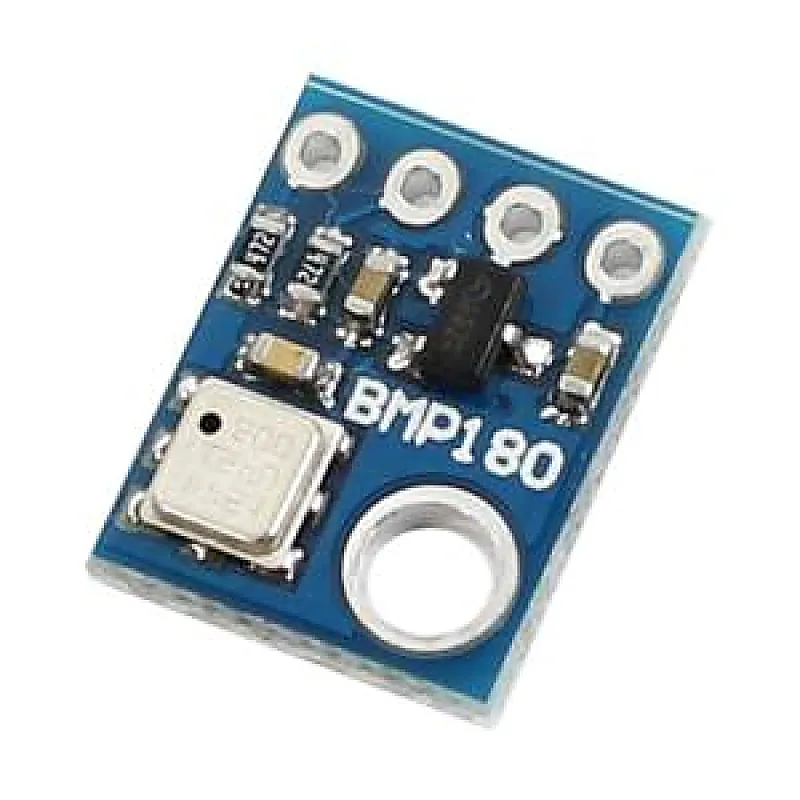

BMP180 Barometric Pressure Sensor Module
BMP180 Barometric Pressure Sensor Module
Description:- BMP180 Sensor is an extremely precise low cost sensor from Bosch for measuring barometric pressure and temperature. Because pressure changes with altitude you can also use it as an altimeter! The sensor is soldered onto a PCB with a 3.3V regulator, I2C level shifter and pull-up resisto
+ 18% GST (added at checkout)
In stock — 1956 units ready
- Vin: 3 to 5VDC
- Logic: 3 to 5V compliant
- Pressure sensing range: 300-1100 hPa (9000m to -500m above sea level)
- Up to 0.03hPa / 0.25m resolution
- -40 to +85°C operational range, +-2°C temperature accuracy
- This board/chip uses I2C 7-bit address 0x77.
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Description:- BMP180 Sensor is an extremely precise low cost sensor from Bosch for measuring barometric pressure and temperature. Because pressure changes with altitude you can also use it as an altimeter! The sensor is soldered onto a PCB with a 3.3V regulator, I2C level shifter and pull-up resistors on the I2C pins. It is completely identical to the BMP085 in terms of firmware/software. Features:- Vin: 3 to 5VDC Logic: 3 to 5V compliant Pressure sensing range: 300-1100 hPa (9000m to -500m above sea level) Up to 0.03hPa / 0.25m resolution -40 to +85°C operational range, +-2°C temperature accuracy This board/chip uses I2C 7-bit address 0x77.
