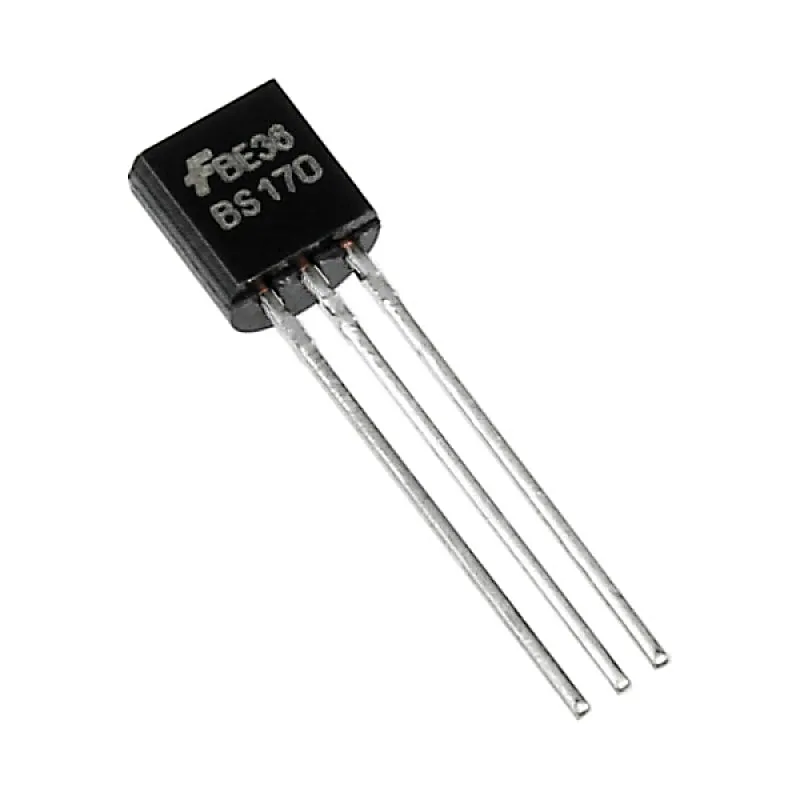

BS170 MOSFET - 60V 500mA N-Channel Small Signal MOSFET TO-92 Package

BS170 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency. Features:- • Low offset voltage • Full-voltage operation • Easily driven without buffer • Low error voltage • No high-temperature run-away • Excellent thermal stability Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 60V Continuous Drain Current (Id) 500mA Drain-Source Resistance (Rds On) 5Ohms Gate-Source Voltage (Vgs) 20V Configuration Single Operating Temperature Range -55 - 150°C Power Dissipation (Pd) 350mW Related Documents BS170 MOSFET Datasheet
