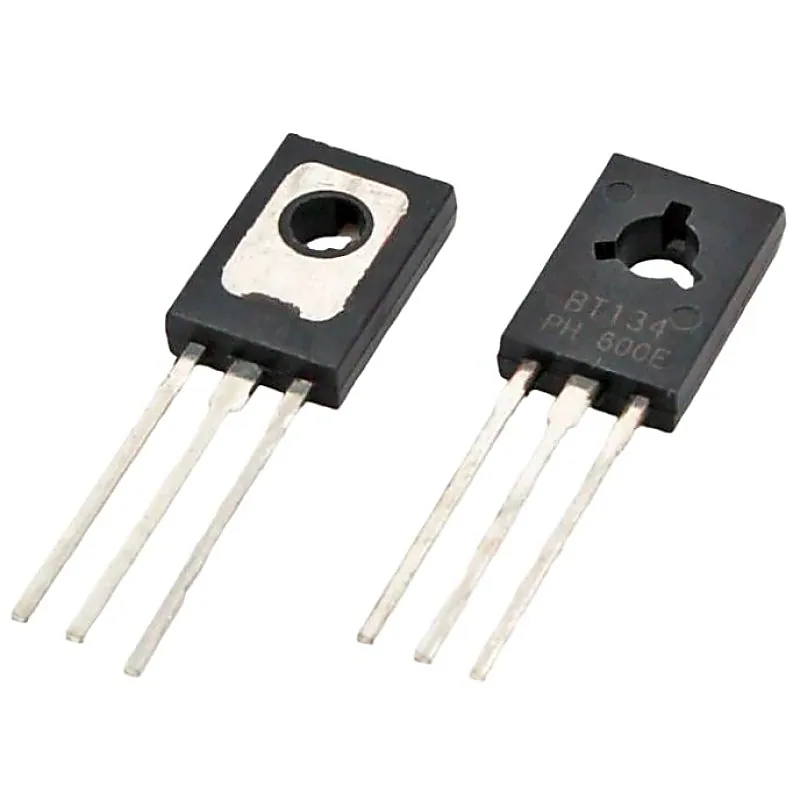

BT134 Triac - 600V - 4A (BT134-600E) Triac

Planar passivated sensitive gate four quadrant triac in a SOT82 (SIP3) plastic package intended for use in general purpose bidirectional switching and phase control applications.This "series E" sensitive gate triac is intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. Features:- High blocking voltage capability Planar passivated for voltage ruggedness and reliability Sensitive gate Triggering in all four quadrants Direct interfacing to logic level ICs Direct interfacing to low power gate drive circuits Low holding current for low current loads and lowest EMI at commutation Compact package Applications:- General purpose low power motor control Home appliances Industrial process control Specifications:- Repetitive Peak off-State voltage : 600V RMS on-state current : 4A Non-Repetitive Peak on-State Current : 25A Peak Gate Current : 2A Peak Gate Voltage : 5A Peak Gate Power : 5W Storage Temperature : -40 to 150 °C Package Includes:- 1 x BT134 Triac - 600V - 4A (BT134-600E) Triac
