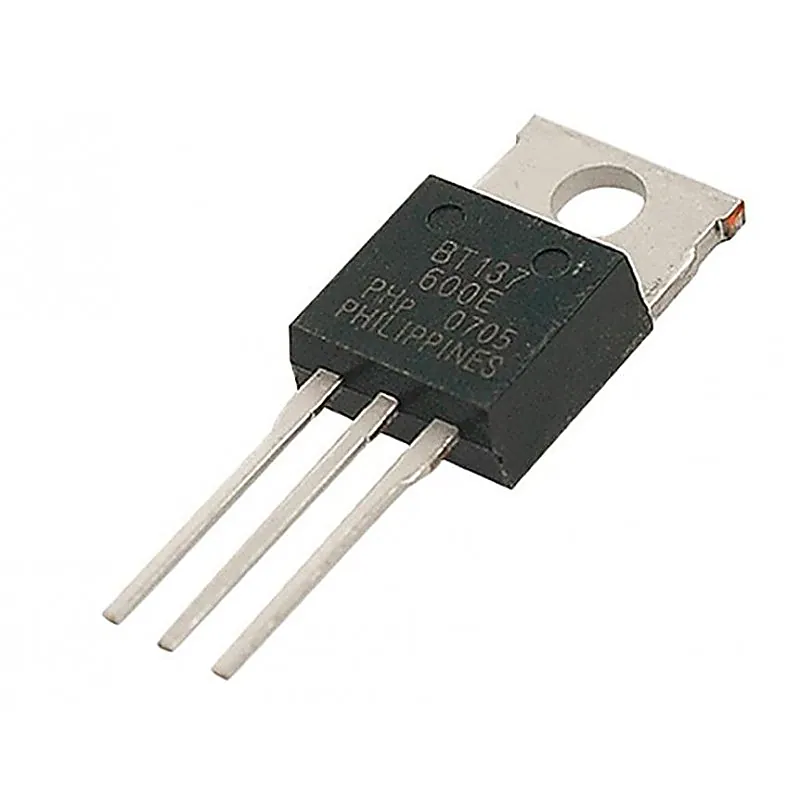

BT137 Triac - 600V - 8A (BT137-600E) Triac

Planar passivated sensitive gate four quadrant triac in a SOT78 plastic package intended for use in general purpose bidirectional switching and phase control applications. This sensitive gate "series E" triac is intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. Features:- Direct triggering from low power drivers and logic ICs High blocking voltage capability Low holding current for low current loads and lowest EMI at commutation Planar passivated for voltage ruggedness and reliability Sensitive gate Triggering in all four quadrants Specifications:- Max Repetitive peak off-state voltage : 600V Non-repetitive peak on state current : 65A Max RMS on-state current : 8 A Holding current : 20mA Gate trigger current : 10mA Peak gate power : 5 Watt Package Type : TO-220 Package Includes:- 1 x BT137 Triac - 600V - 8A (BT137-600E) Triac
