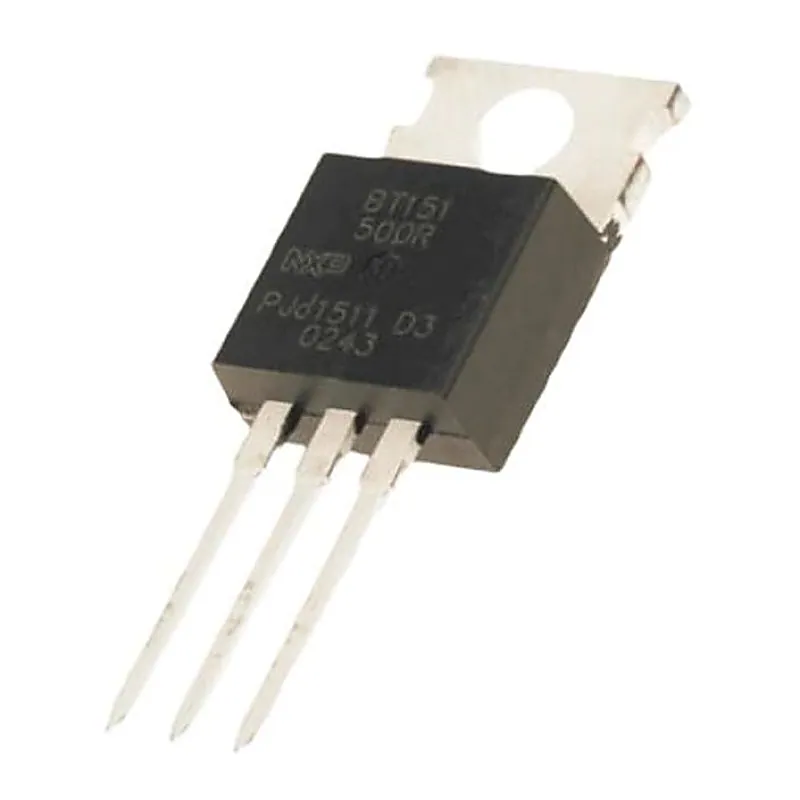

BT151 - 500V - 12A SCR - Thyristor
BT151 - 500V - 12A SCR - Thyristor
Planar passivated Silicon Controlled Rectifier (SCR) in a SOT78 plastic package intended for use in applications requiring good bidirectional blocking voltage capability, high surge current capability and high thermal cycling performance. Features:- • Good bidirectional blocking voltage capability •
+ 18% GST (added at checkout)
In stock — 1460 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Planar passivated Silicon Controlled Rectifier (SCR) in a SOT78 plastic package intended for use in applications requiring good bidirectional blocking voltage capability, high surge current capability and high thermal cycling performance. Features:- • Good bidirectional blocking voltage capability • High surge current capability • High thermal cycling performance Applications:- • Ignition circuits • Motor control • Protection circuits • Voltage regulation • Various solid state relay etc. Specification:- Symbol Parameter Ratings Units VRRM Repetitive Peak Reverse Voltage 500 V VDRM Repetitive Peak Off-state Voltage 500 V IT(AV) Average on-state current 7.5 A IT(RMS) Effective on-state current 12 A ITSM Non-Repetitive Peak On-state Current 120 A Tj Junction Temperature 125 °C Related Document:- BT151 SCR Data Sheet
