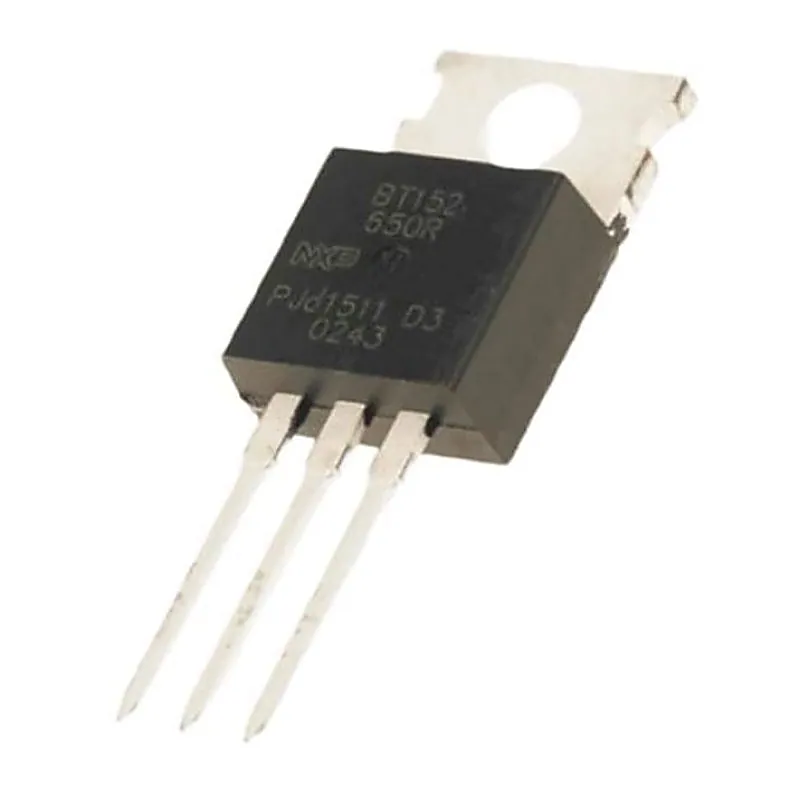

BT152 - 650V - 13A SCR - Thyristor
BT152 - 650V - 13A SCR - Thyristor
The BT152 SCE is a Planar passivated Silicon Controlled Rectifier in a SOT78 (TO-220AB) plastic package intended for use in applications requiring very high inrush current capability and high thermal cycling performance. Features:- • High thermal cycling performance • High voltage capability • Plana
+ 18% GST (added at checkout)
In stock — 1629 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The BT152 SCE is a Planar passivated Silicon Controlled Rectifier in a SOT78 (TO-220AB) plastic package intended for use in applications requiring very high inrush current capability and high thermal cycling performance. Features:- • High thermal cycling performance • High voltage capability • Planar passivated for voltage ruggedness and reliability • Very high current surge capability Applications:- • Ignition circuits • Motor control • Protection circuits e.g. SMPS inrush current • Voltage regulation Specifications:- Symbol Parameter Ratings Units VRRM Repetitive Peak Reverse Voltage 600 V IT(AV) Average on-state current 13 A IT(RMS) Effective on-state current 20 A ITSM Non-Repetitive Peak On-state Current 200 A Tj Junction Temperature 125 °C Related Document:- BT152 SCR Data Sheet
