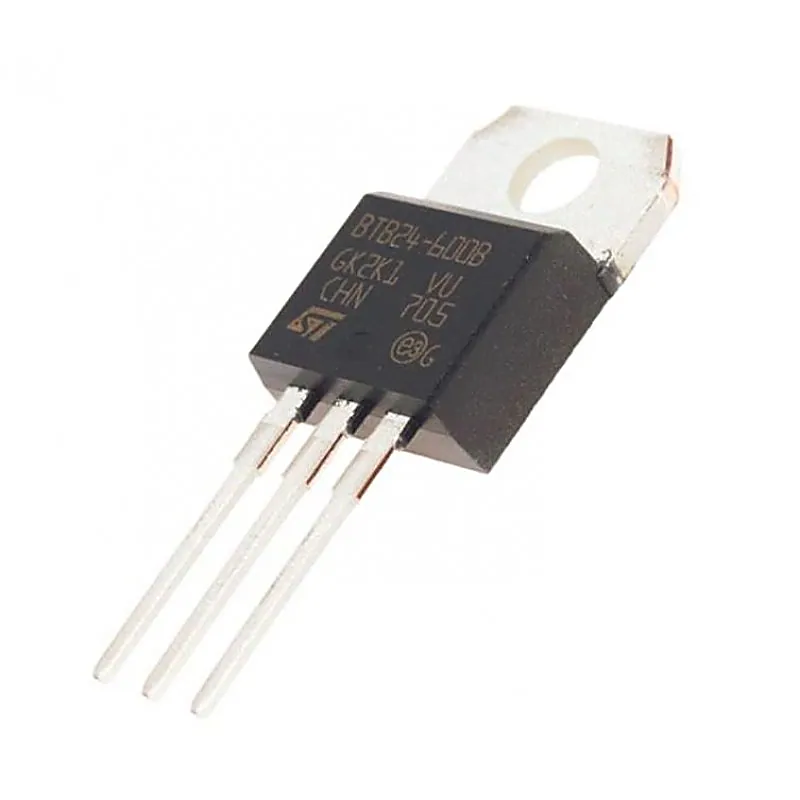

BTB24-600B - 600V - 25A Triac
BTB24-600B - 600V - 25A Triac
The snubberless versions are especially recommended for use on inductive loads, due to their high commutation performances. Applications include the ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits, etc., or for phase control operation in l
+ 18% GST (added at checkout)
In stock — 846 units ready
- High current triac
- Low thermal resistance with clip bonding
- High commutation (4 quadrant) or very high
- Commutation (3 quadrant) capability
- BTA series UL1557 certified (File ref: 81734)
- Packages are RoHS (2002/95/EC) compliant
- Product Type : Triac
- Subcategory : Thyristor
- Non Repetitive On-State Current : 260A
- Rated Repetitive Off-State Voltage VDRM : 600V
- Off-State Leakage Current @ VDRM IDRM : 5 uA
- Current Rating : 25A
- On-State Voltage : 1.55 V
- Holding Current Ih Max : 75mA
- Gate Trigger Voltage – Vgt : 1.3V
- Gate Trigger Current – Igt : 50mA
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +125°C
- Mounting Style : Through Hole
- Package/Case : TO-220-3
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The snubberless versions are especially recommended for use on inductive loads, due to their high commutation performances. Applications include the ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits, etc., or for phase control operation in light dimmers, motor speed controllers, and similar. This Product Known as 25A Thyristor Bidirectional SCR, 25A Thyristor, 25A SCR, 25A Triac etc.. Features:- High current triac Low thermal resistance with clip bonding High commutation (4 quadrant) or very high Commutation (3 quadrant) capability BTA series UL1557 certified (File ref: 81734) Packages are RoHS (2002/95/EC) compliant Specifications:- Product Type : Triac Subcategory : Thyristor Non Repetitive On-State Current : 260A Rated Repetitive Off-State Voltage VDRM : 600V Off-State Leakage Current @ VDRM IDRM : 5 uA Current Rating : 25A On-State Voltage : 1.55 V Holding Current Ih Max : 75mA Gate Trigger Voltage – Vgt : 1.3V Gate Trigger Current – Igt : 50mA Minimum Operating Temperature : -40°C Maximum Operating Temperature : +125°C Mounting Style : Through Hole Package/Case : TO-220-3 Package Includes:- 1 x BTB24-600B - 600V - 25A Triac
