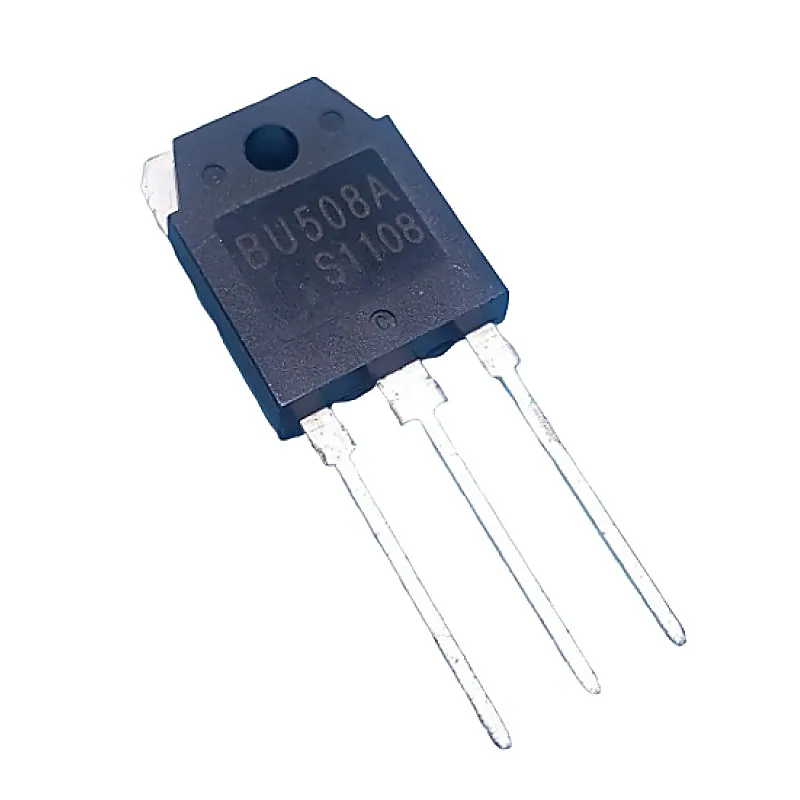

BU508A NPN High Voltage Fast switching Power Transistor 700V 5A TO-3PN Package
BU508A NPN High Voltage Fast switching Power Transistor 700V 5A TO-3PN Package
BU508A is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • High Ruggedness • Simple d
+ 18% GST (added at checkout)
In stock — 575 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
BU508A is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • High Ruggedness • Simple drive requirements • High safe operating area • For low distortion complementary designs • Easy to carry and handle Detailed Specifications:- Transistor Polarity NPN Collector−Emitter Voltage (VCEO) 1500V Continuous Collector Current (Ic) 8A Operating Temperature Range -65 - 150°C Power Dissipation (Pd) 125W Collector Peak Current (ICM) 15A Thermal Resistance Junction-Case 2.5°C/W Fall Time (tF) 550 ns Transition Frequency (fT) 7MHz Related Documents:- BU508A Transistor Datasheet
