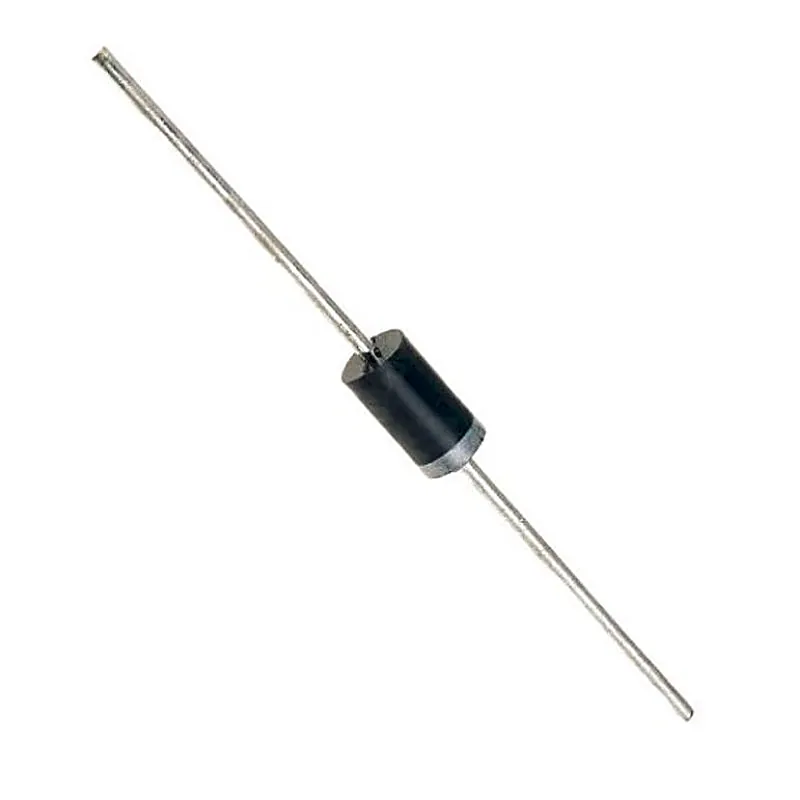

BY299 Fast / Ultrafast Power Diode

The BY299 is the Fast Recovery Rectifier Diodes. The typical applications of BY299 are the rectification of medium frequencies, snubber or Bootstrap diodes Commercial grade. Features:- • High current capability • High surge current capability • High reliability • Low reverse current • Low forward voltage drop • Fast switching for high efficiency Mechanical Characteristics:- • Case : DO-201AD Molded plastic • Epoxy : UL94V-O rate flame retardant • Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed • Polarity : Color band denotes cathode end • Mounting position : Any • Weight : 1.16 grams Specification:- Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage 800 V VRMS Maximum RMS Voltage 560 V VDC Maximum DC Blocking Voltage 800 V VF Maximum Peak Forward Voltage at IF = 2.0 Amps 1.3 V CJ Typical Junction Capacitance 28 pf IFSM Non-Repetitive Peak Forward Surge Current 70 A TJ Operating Junction Temperature Range - 50 to + 125 °C Tstg Storage Temperature Range - 50 to + 125 °C IF(AV) Maximum Average Forward Current 0.375"(9.5mm) Lead Length Ta = 50 °C 2 A Related Document:- BY299 Diode Data Sheet
