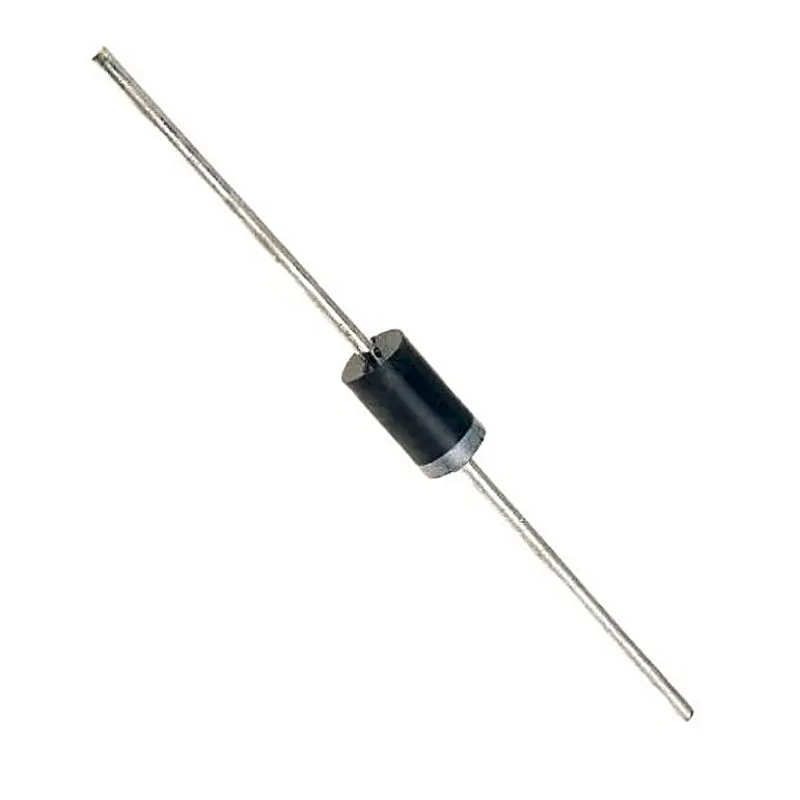

BY399 Fast / Ultrafast Power Diode

The BY299 is the Fast Recovery Rectifier Diodes. The typical applications of BY299 are the rectification of medium frequencies, snubber or Bootstrap diodes Commercial grade. Features:- • Fast recovery diodes • Diffused junction • High surge capability • The plastic material carries U/L recognition 94V-0 • Low forward voltage drop • High current capability • High reliability • High surge current capability Mechanical Characteristics:- • Terminals: Axial leads • Polarity: Color band denotes cathode • Cases: Molded plastic • Epoxy: UL 94V-0 rate flame retardant • Lead: Axial leads, solderable per MIL- • Lead: STD-202, Method 208 guaranteed Polarity: Color band denotes cathode end • High temperature soldering guaranteed: 250°C/10 seconds/.375”,(9.5mm) lead lengths at 5 lbs.,(2.3kg) tension • Weight: 1.2 grams Specification:- Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage 800 V VRMS Maximum RMS Voltage 560 V VDC Maximum DC Blocking Voltage 800 V IO Average Rectified Output Current 3 A IFSM Non-Repetitive Peak Forward Surge Current 150 A TJ Operating Junction Temperature Range − 65 to +150 °C Tstg Storage Temperature Range − 65 to +150 °C Related Document:- BY399 Diode Data Sheet
