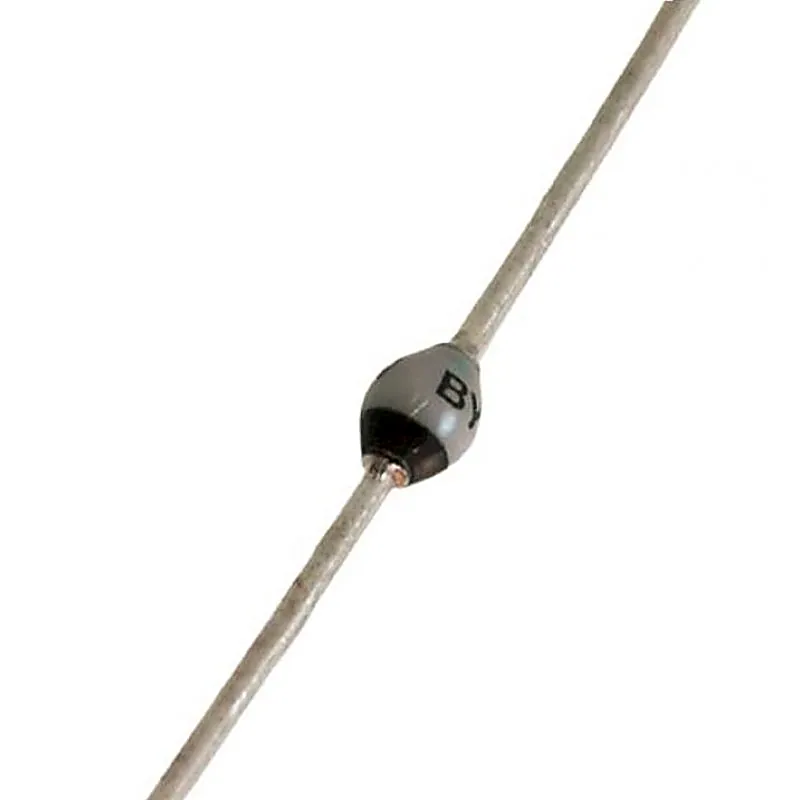

BYV95C Fast Recovery Rectifier Diode

The BYV95C is an Avalanche Fast Recovery Rectifier Diodes with a PRV of 200 - 1000 Volts and 1.5 Amperes. The following features are: High current capability High surge current capability High reliability Low reverse current Low forward voltage drop Fast switching for high efficiency High temperature metallurgically bonded construction Hermetically sealed package Glass passivated cavity-free junction 1.5 Ampere operation at TA=55°C with no thermal runaway Typical IR less than 0.1µA Capable of meeting environmental standards of MIL-S-19500 Fast switching for high efficiency High temperature soldering guaranteed: 350°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Characteristics:- • Case : D2 Molded plastic • Epoxy : UL94V-O rate flame retardant • Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed • Polarity : Color band denotes cathode end • Mounting position : Any • Weight : 0.465 gram Specification:- Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage 600 V VRMS Maximum RMS Voltage 420 V VDC Maximum DC Blocking Voltage 600 V IF(AV) Maximum Average Forward Rectified Current 1.5 A IFSM Non-Repetitive Peak Forward Surge Current 35 A TJ Operating Junction Temperature Range − 65 to +175 °C Tstg Storage Temperature Range − 65 to +175 °C Related Document:- BYV95 Rectifier Diode Data Sheet
