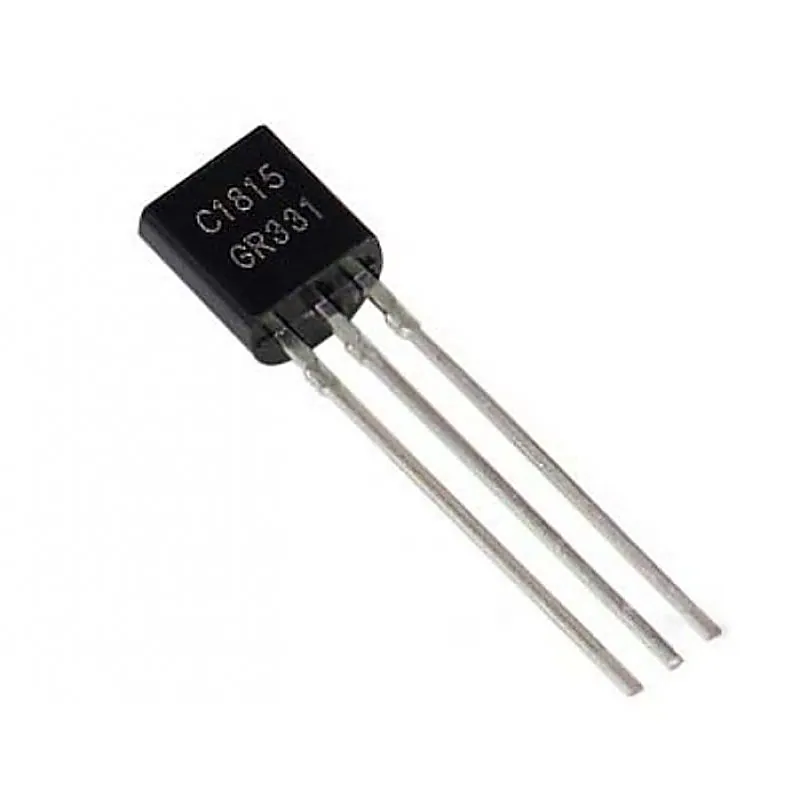

C1815 NPN Audio Frequency Amplifier Transistor 50V 150mA TO-92 Package - 5 Pieces Pack
C1815 NPN Audio Frequency Amplifier Transistor 50V 150mA TO-92 Package - 5 Pieces Pack
C1815 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Si
+ 18% GST (added at checkout)
In stock — 1623 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
C1815 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Simple drive requirements • High safe operating area • For low distortion complementary designs • Easy to carry and handle Detailed Specifications:- Transistor Polarity NPN Collector−Emitter Voltage (VCEO) 50V Collector−Base Voltage (VCBO) 60V Continuous Collector Current (Ic) 150mA Emitter Base Voltage (VEBO) 5V Operating Temperature Range -55 - 150°C DC Current Gain (hFE) 130-400 Transition Frequency (fT) 80MHz Related Documents:- C1815 Transistor Datasheet
