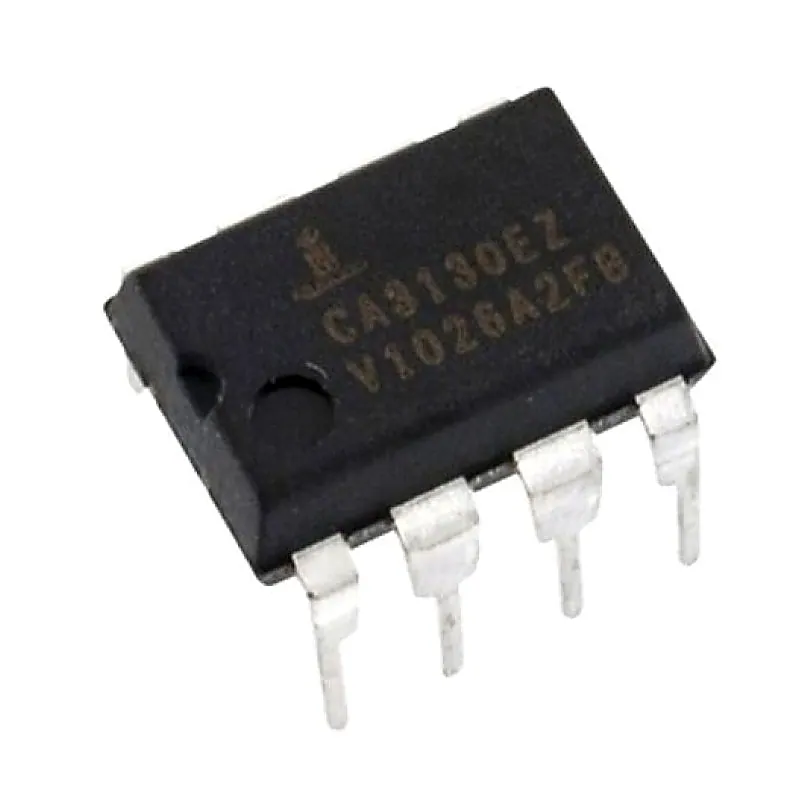

CA3130 CMOS Op-Amp IC DIP-8 Package

The CA3130 are op amps that combine the advantage of both CMOS and bipolar transistors. Gate-protected P-Channel MOSFET (PMOS) transistors are used in the input circuit to provide very-high-input impedance, very-low-input current, and exceptional speed performance. The use of PMOS transistors in the input stage results in common-mode input-voltage capability down to 0.5V below the negative-supply terminal, an important attribute in single-supply applications. A CMOS transistor-pair, capable of swinging the output voltage to within 10mV of either supply-voltage terminal (at very high values of load impedance), is employed as the output circuit. The CA3130 Series circuits operate at supply voltages ranging from 5V to 16V, (2.5V to 8V). They can be phase compensated with a single external capacitor, and have terminals for adjustment of offset voltage for applications requiring offset-null capability. Terminal provisions are also made to permit strobing of the output stage. The CA3130A offers superior input characteristics over those of the CA3130. Features:- • MOSFET Input Stage Provides: - Very High ZI = 1.5 T (1.5 x 1012) (Typ) - Very Low II 5pA (Typ) at 15V Operation = 2pA (Typ) at 5V Operation • Ideal for Single-Supply Applications • Common-Mode Input-Voltage Range Includes Negative Supply Rail; Input Terminals can be Swung 0.5V Below Negative Supply Rail • CMOS Output Stage Permits Signal Swing to Either (or both) Supply Rails • Pb-Free Plus Anneal Available (RoHS Compliant) Specification:- Parameter Specification DC Supply Voltage 16 V Differential Input Voltage 8 V DC Input Voltage (V+ +8V) to (V- -0.5V) Input-Terminal Current 1mA Operating Temperature Range 50°C to 125°C Output Short-Circuit Duration Indefinite Related Document:- CA3130 IC Data Sheet
