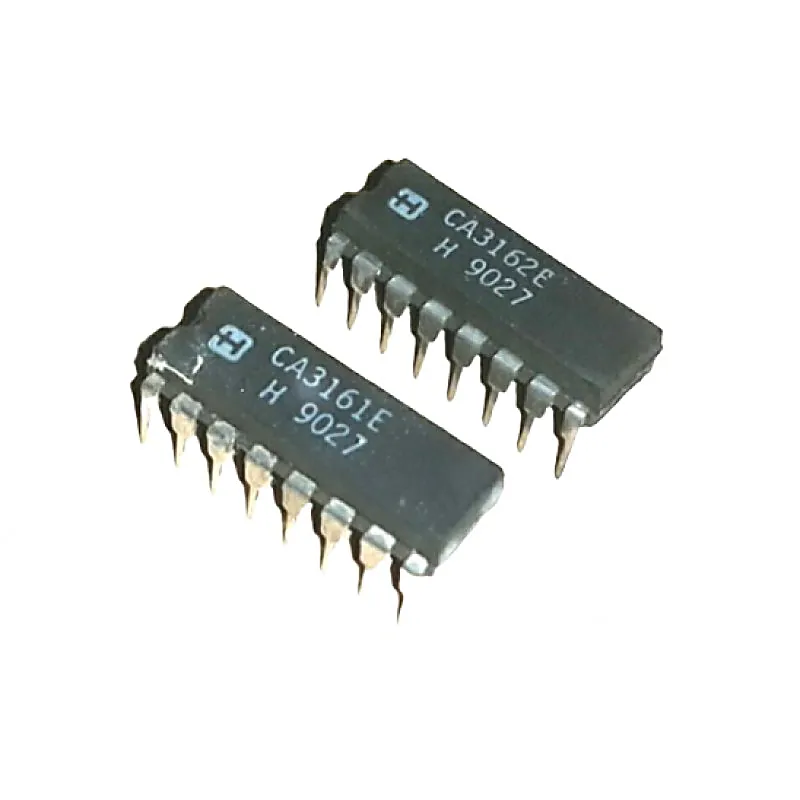

CA3161 IC + CA3162 IC Pair A/D Converter for 3 Digit Display DIP-16 Package

The CA3161 is a monolithic integrated circuit that performs the BCD to seven segment decoding function and features constant current segment drivers. When used with the CA3162 A/D Converter the CA3161 provides a complete digital readout system with a minimum number of external parts. The CA3162 and CA3162 are I2L monolithic A/D converters that provide a 3 digit multiplexed BCD output. They are used with the CA3161 BCD-to-Seven-Segment Decoder/Driver and a minimum of external parts to implement a complete 3-digit display. The CA3162 is identical to the CA3162 except for an extended operating temperature range . Features of CA3161 IC:- • TTL Compatible Input Logic Levels • 25mA (Typ) Constant Current Segment Outputs • Eliminates Need for Output Current Limiting Resistors • Pin Compatible with Other Industry Standard Decoders • Low Standby Power Dissipation . . . . . . . .18mW (Typ) Features of CA3162 IC:- • Dual Slope A/D Conversion • Multiplexed BCD Display • Ultra Stable Internal Band Gap Voltage Reference • Capable of Reading 99mV Below Ground with Single Supply • Differential Input • Internal Timing - No External Clock Required • Choice of Low Speed (4Hz) or High Speed (96Hz) Conversion Rate • “Hold” Inhibits Conversion but Maintains Delay • Over range Indication - “EEE” for Reading Greater than +999mV, “-” for Reading More Negative than -99mV When Used With CA3161 Specification of CA3161 IC:- Parameters Specification DC V SUPPLY +7.0 V Input Voltage +5.5 V Output Voltage Output “Off” +7 V Output “On” +10 V Specification of CA3162 IC:- Parameters Specification DC V SUPPLY +7.0 V Input Voltage +15 V Temperature Range 0 to 75 Related Documents:- CA3161 IC Datasheet CA3162 IC Datasheet
