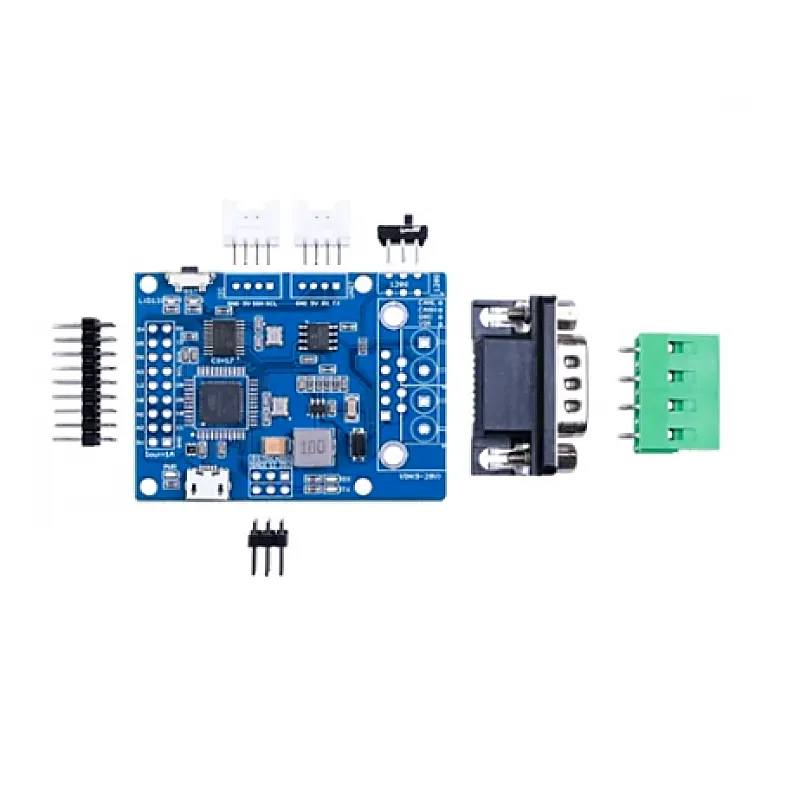

CANBed Arduino CAN-BUS Development Kit

CANBed Arduino CAN-BUS Development Kit embeds an ATmega32U4 chip, which means you dont need to add other jump wires to another Arduino Board, it is an Arduino board itself plus MCP2515CAN Bus controllerand MCP2551 CAN Bus transceiver ! CAN-BUS is a common protocol and widely used in industry due to its long travel distance, medium communication speed, and high reliability. Now you can realize a CAN-BUS project through this tiny little development board. Because of theATmega32U4 onboard chip, this board has rich resources in pins. As a matter of fact, there are 18 pins based on core chip set up on the board, which include digital pins, analog pins, UART, and I2C interface. Besides, this CANBed adopts MCP2515 CAN Bus controller with SPI interface and MCP2551 to achieve the CAN-Bus capability. There are also two kinds of CAN Bus interfaces for various demands which are sub-D9 connector and terminal block interface. They would fit all your needs in the connecting method. This CAN-Bus development board is perfectly compatible with Arduino IDE. With the help of theArduino CAN-Bus library, you will save plenty of time for your CAN project. Features: Helps to realize the CAN-BUS communication protocol Requires no other MCU to control Comes with: Atmega32U4 chip MCP2515 CAN-BUS controller MCP2551 CAN-BUS transceiver OBD-II and CAN standard pinout that is selectable at the sub-D connector Combines CAN-BUS shield and Arduino development board (Atmega32U4) together on a single board 18 pins that include digital pins, analog pins, UART, and I 2 C interface Compatible with Arduino IDE Package Includes: 1 x CANBed PCBA 1 x sub-D connector 1 x 4PIN Terminal 2 x 4PIN 2.0 Connector 1 x 92 2.54 Header 1 x 32 2.54 Header Attachments : Download Download
