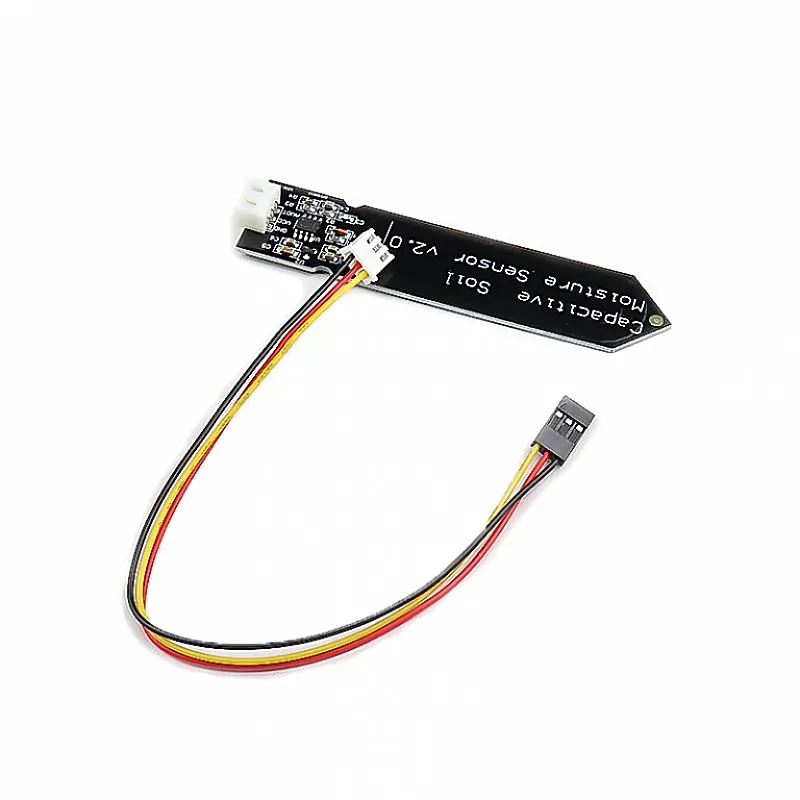

Capacitive Soil Moisture Sensor V2.0

This capacitive soil moisture sensor V2.0 measures soil moisture levels by capacitive sensing rather than resistive sensing like other sensors on the market. It is made of corrosion-resistant material which gives it excellent service life. Insert it into the soil around your plants and impress your friends with real-time soil moisture data! This module includes an onboard voltage regulator which gives it an operating voltage range of 3.3 ~ 5.5V. It is perfect for low-voltage MCUs, both 3.3V, and 5V. For compatibility with a Raspberry Pi, it will need an ADC converter. This soil moisture sensor is compatible with our 3-pin Gravity interface, we can connect to the Gravity I/O expansion shield. Software Arduino IDE V1.6.5 Features: Supports 3-Pin Gravity Sensor interface Analog output Applications: Garden plants Moisture detection Intelligent agriculture Package Includes: 1 x Capacitive Soil Moisture Sensor V2.0 Additional information Operating Voltage 3.3 ~ 5.5 VDC Output Voltage 0 ~ 3.0VDC Operating Current 5mA Interface PH2.54-3P Dimensions mm(LxWxH) 98 x 23 x 4 Weight (gm) 15
