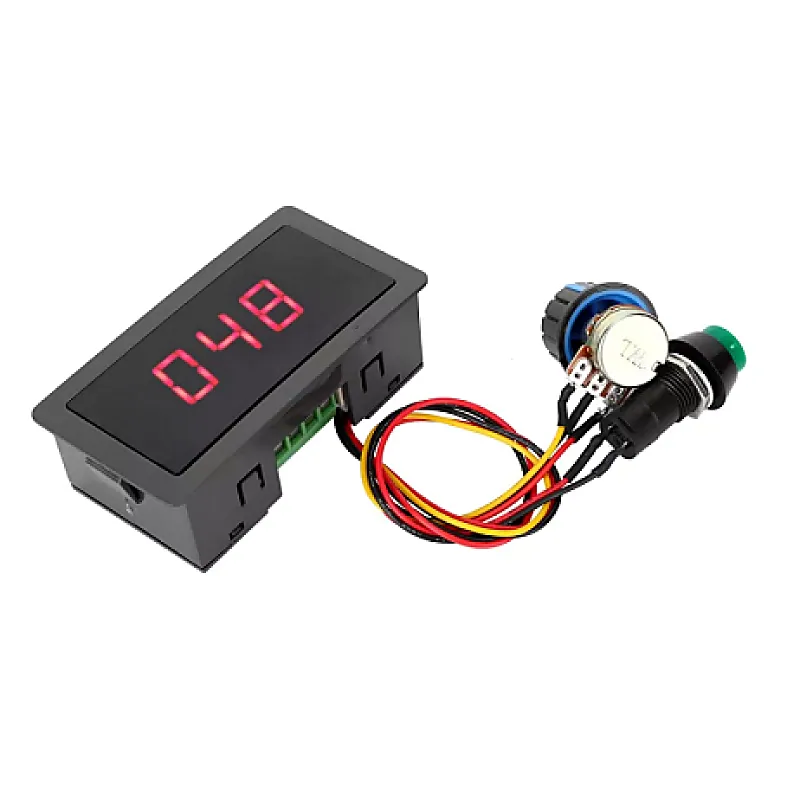

CCM5D Digital PWM DC Motor Speed Controller With Display
CCM5D Digital PWM DC Motor Speed Controller With Display
This CCM5D Digital PWM DC Motor Speed Controller With Display is used to control the speed of a DC motor through PWM. This controller comes with a 3 digit 7 segment Red color display, which displays the duty cycle of the PWM from range 0 to 100. Feature: 1. Configure industrial-grade touch buttons,
+ 18% GST (added at checkout)
In stock — 105 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This CCM5D Digital PWM DC Motor Speed Controller With Display is used to control the speed of a DC motor through PWM. This controller comes with a 3 digit 7 segment Red color display, which displays the duty cycle of the PWM from range 0 to 100. Feature: 1. Configure industrial-grade touch buttons, press to enter the sleep state, press again to restart work. 2. The speed of the DC motor can be controlled by adjusting the pulse width modulation (PWM). 3. With a digital display screen, it can display 0-100 numerical value, the operation is simple and convenient. 4. The knob realizes 0-100% adjustment, supports step-less speed regulation, and facilitates positioning speed. 5. PWM DC motor speed regulator, made of high-quality ABS material, sturdy and durable. Package Includes: 1 x CCM5D Digital PWM DC Motor Speed Controller With Display Specifications : Material ABS Operating Voltage (VDC) 6 ~ 24 Max. Operating Current (mA) upto 8A Product Frequency 16khz (Motor is quiet at low speed and full twisting force at low speed) Speed Range 0%-100% Length (mm) 71 Width (mm) 40 Height (mm) 26 Weight (gm) 52
