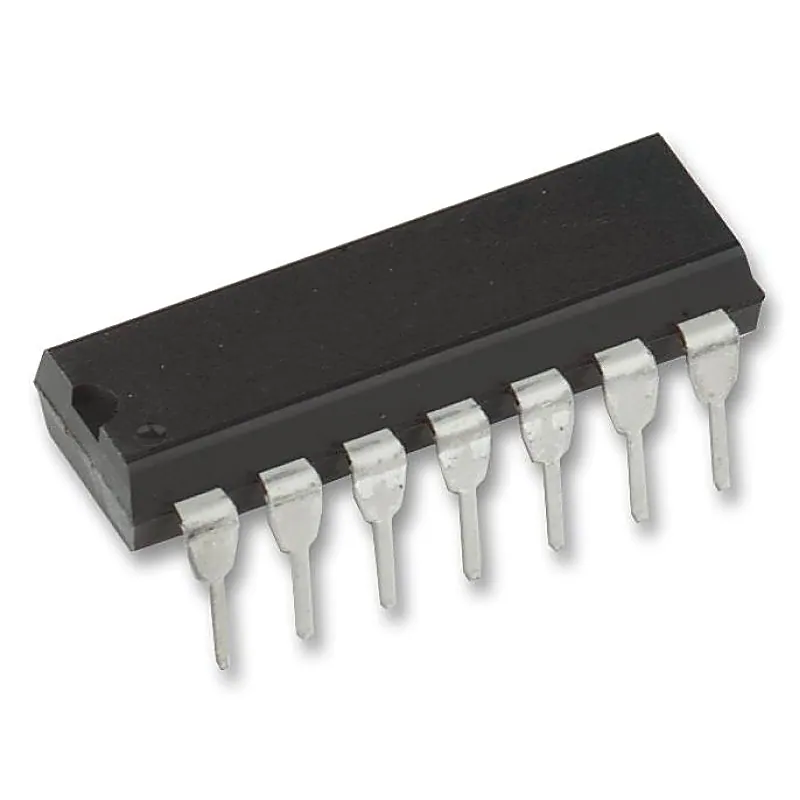

CD4013 Dual D Type Flip-Flop IC DIP-14 Package

The CD4013 device consists of two identical, independent data-type flip-flops. Each flip-flop has independent data, set, reset, and clock inputs and Q and Q outputs. These devices can be used for shift register applications, and, by connecting Q output to the data input, for counter and toggle applications. The logic level present at the D input is transferred to the Q output during the positive-going transition of the clock pulse. Setting or resetting is independent of the clock and is accomplished by a high level on the set or reset line, respectively. The CD4013 types are supplied in 14-pin dual-in-line plastic packages (E suffix), 14-pin small-outline packages (M, MT, M96, and NSR suffixes), and 14-pin thin shrink small-outline packages (PW and PWR suffixes). Features:- Asynchronous Set-Reset Capability Static Flip-Flop Operation Medium-Speed Operation: 16 MHz (Typical) Clock Toggle Rate at 10-V Supply Standardized Symmetrical Output Characteristics Maximum Input Current Of 1-µA at 18 V Over Full Package Temperature Range: 100 nA at 18 V and 25°C Noise Margin (Over Full Package Temperature Range): 1 V at V DD = 5 V 2 V at V DD = 10 V 2.5 V at V DD = 15 V Detailed Specifications:- Parameters Specifications Part number CD4013B Technology Family CD4000 Input type Standard CMOS Output type Push-Pull VCC (Min) (V) 3 VCC (Max) (V) 18 Channels (#) 2 Clock Frequency (Max) (MHz) 24 ICC (uA) 600 IOL (Max) (mA) 6.8 IOH (Max) (mA) -6.8 Features Balanced outputs, Standard speed (tpd > 50ns), Positive input clamp diode Rating See Data Sheet Package Group PDIP|14 Related Documents:- CD4013 IC Datasheet
