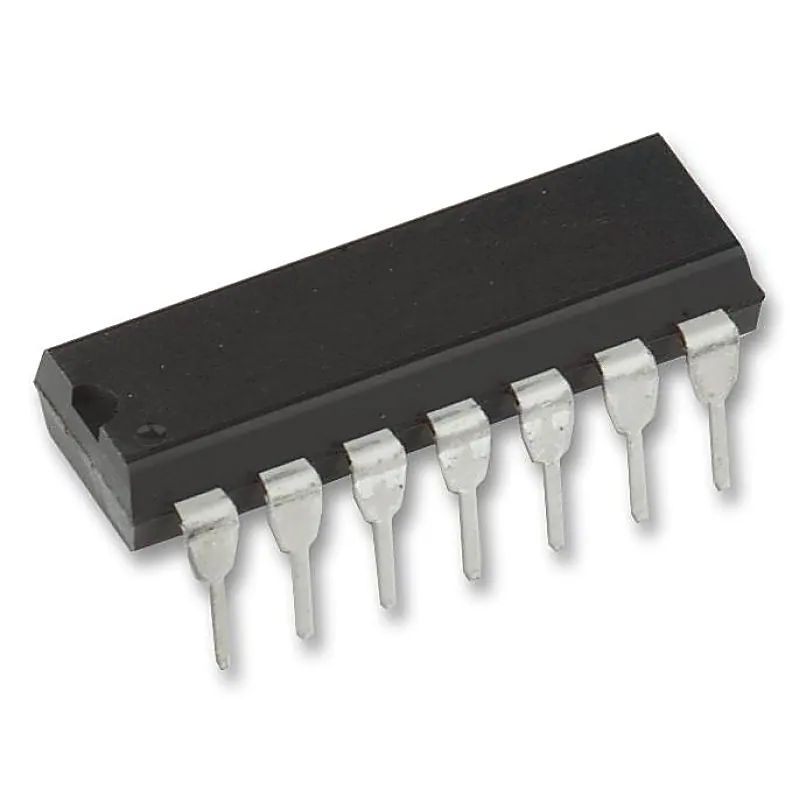

CD4023 Triple 3-Input NAND Gate IC DIP-14 Package

CD4023 NAND gate provide the system designer with direct implementation of the NAND function and supplement the existing family of CMOS gates. All inputs and outputs are buffered. The CD4023 type is supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PWR suffix). The CD4023 type is also supplied in 14-lead thin shrink small-outline packages (PW suffix). Features:- Propagation delay time = 60 ns (typ.) at C L = 50 pF, V DD = 10 V Buffered inputs and outputs Standardized symmetrical output characteristics Maximum input current of 1 µA at 18 V over-full package temperature range; 100 nA at 18 V and 25°C 100% tested for quiescent current at 20 V 5-V, 10-V, and 15-V parametric ratings Noise margin (over full package temperature range: 1 V at V DD = 5 V 2 V at V DD = 10 V 2.5 at V DD = 15 V Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of "B" Series CMOS Devices". Specifications:- Parameter Specification Part number CD4023B Technology Family CD4000 VCC (Min) (V) 3 VCC (Max) (V) 18 Channels (#) 4 Inputs per channel 2 IOL (Max) (mA) 1.5 IOH (Max) (mA) -1.5 Input type Standard CMOS Output type Push-Pull Features Standard Speed (tpd > 50ns) Rating See Data Sheet Data rate (Max) (Mbps) 8 Operating temperature range (C) -55 to 125 Package size: mm2:W x L (PKG) 14PDIP: 181 mm2: 9.4 x 19.3 (PDIP|14) Package Group PDIP|14 Related Document:- CD4023 IC Datasheet
