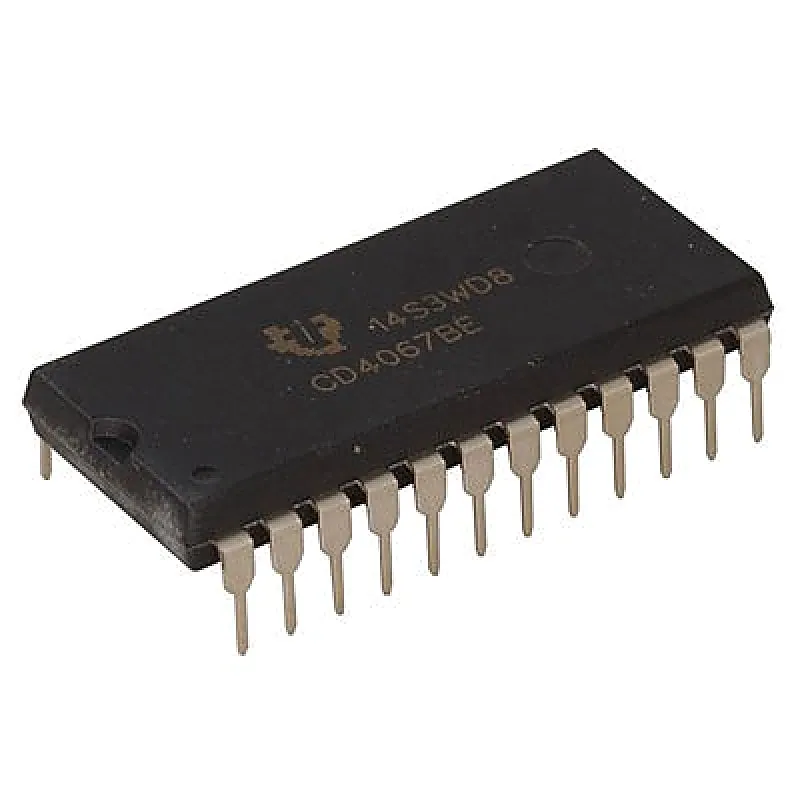

CD4067 16-Channel Analog Multiplexer/Demultiplexer IC DIP-24 Package

CD4067 CMOS analog multiplexers/demultiplexers are digitally controlled analog switches having low ON impedance, low OFF leakage current, and internal address decoding. In addition, the ON resistance is relatively constant over the full input-signal range. The CD4067 is a 16-channel multiplexer with four binary control inputs, A, B, C, D, and an inhibit input, arranged so that any combination of the inputs selects one switch. A logic "1" present at the inhibit input turns all channels off. The CD4067 type are supplied in 24-lead hermetic dual-in-line ceramic packages (F3A suffix), 24-lead dual-in-line plastic packages (E suffix), 24-lead small-outline packages (M, M96, and NSR suffixes), and 24-lead thin shrink small-outline packages (P and PWR suffixes). Features:- Low ON resistance: 125 (typ.) over 15 V p-p signal-input range for V DD - V SS = 15 V High OFF resistance: channel leakage of ±10 pA (typ.) @ V DD - V SS = 10 V Matched switch characteristics: R ON = 5 (typ.) for V DD - V SS = 15 V Very low quiescent power dissipation under all digital-control input and supply conditions: 0.2 uW (typ.) @ V DD - V SS = 10 V Binary address decoding on chip 5-V, 10-V, and 15-V parametric ratings 100% tested for quiescent current at 20 V Maximum input current of 1 µA at 18 V over full package-temperature range; 100nA at 18 V and 25°C Meets all requirements of JEDEC Tentative Standard No. 13A, "Standard Specifications for Description of 'B' Series CMOS Devices" Applications: Analog and digital multiplexing and demultiplexing A/D and D/A conversion Signal gating Specifications:- Parameter Specification Part number CD4067 Configuration 16:01 Number of channels (#) 1 Ron (Typ) (Ohms) 125 Bandwidth (MHz) 14 Rating Catalog Operating temperature range (C) -55 to 125 Package Group PDIP|24 Input/output continuous current (Max (mA) 10 Supply current (Typ (uA) 0.04 CON (Typ) (pF) 5 Related Document:- CD4067 IC Datasheet
