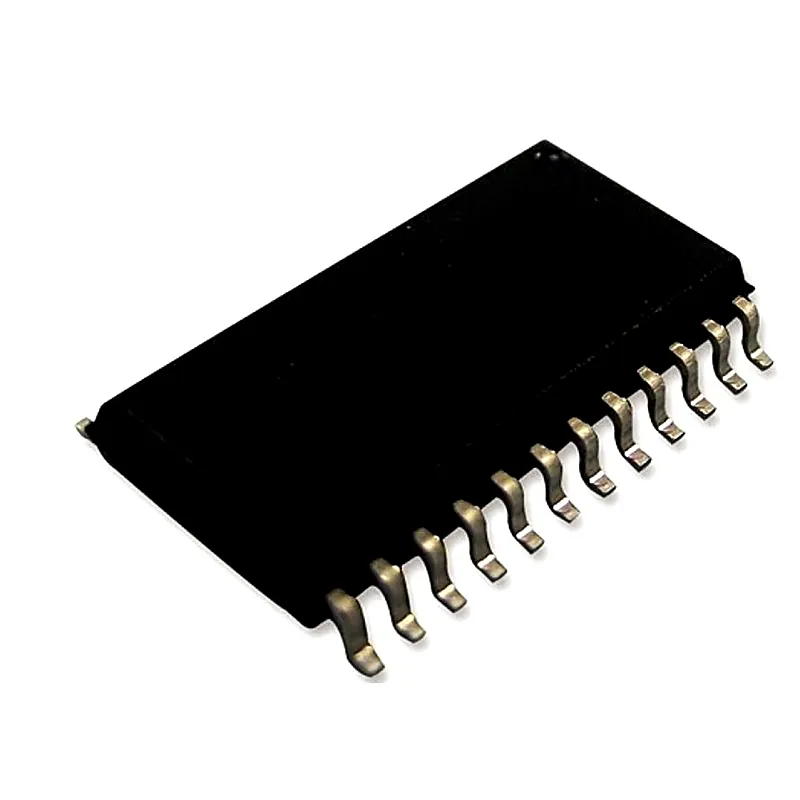

CD4067 IC - (SMD Package) - 16-Channel Analog Multiplexer/Demultiplexer IC

The CD4067 CMOS analog multiplexers/ demultiplexers are digitally controlled analog switches having low ON Impedance, low OFF leakage current, and internal address decoding. In addition, the ON resistance is relatively constant over the full input-signal range. The CD4067 is a 16 channel multiplexer with four binary control inputs, A, B, C, D and an inhibit input, arranged so that any combination of the inputs selects one switch. The inputs permit selection of one of eight pairs of switches. A logic “1” present at the inhibit input turns all channels off. The CD4067 are supplied in these 24 lead outline packages: Braze Seal DIP: H4V †H6M Frit Seal DIP: H1Z †HFN Ceramic Flatpack: H4P †H4P Features:- • High Voltage Types (20V Rating) • CD4067 Single 16 Channel Multiplexer/Demultiplexer • Low ON Resistance: 125Ω (typ) Over 15Vp-p Signal Input Range for VDD - VSS = 15V • High OFF Resistance: Channel Leakage of ±10pA (typ) at VDD - VSS = 18V • Matched Switch Characteristics: RON = 5Ω (typ) for VDD - VSS = 15V • Very Low Quiescent Power Dissipation Under All Digital Control Input and Supply Conditions: 0.2µW (typ) at VDD - VSS = 10V • Binary Address Decoding on Chip • 5V, 10V and 15V Parametric Ratings • 100% Tested for Quiescent Current at 20V • Maximum Input Current of 1µA at 18V Over Full Package Temperature Range; 100nA at 18V and +25oC • Standardized Symmetrical Output Characteristics Applications:- • Analog and Digital Multiplexing and Demultiplexing • A/D and D/A Conversion • Signal Gating: When these devices are used as demultiplexers the “CHANNEL IN/OUT” terminals are the outputs and the “COMMON OUT/IN” terminals are the inputs. Specification:- Symbol Parameter Values VDD DC Supply Voltage -0.5V to +20V VIN Input Voltage -0.5V to VDD +0.5V TS Storage Temperature −65°C to +150°C PD Power Dissipation 700 mW TL Lead Temperature 265°C TJ Operating Temperature Range -55°C to +125°C IC DC Input Current ±10mA Related Document:- CD4067 SMD Data Sheet
