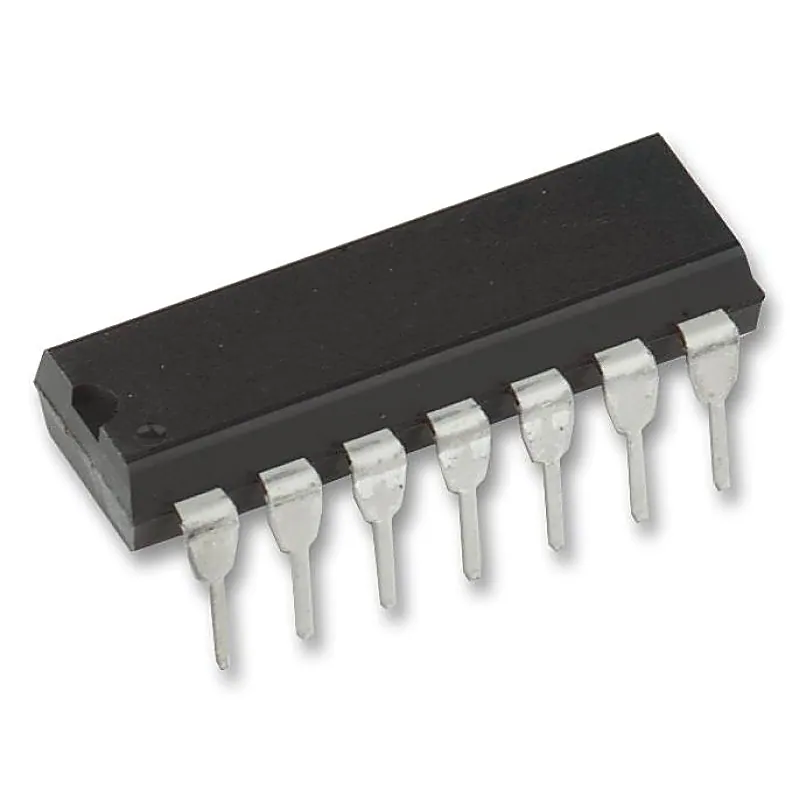

CD4082 Dual 4 Input AND Gate IC DIP-14 Package

CD4082B AND gates, provide the system designer with direct implementation of the AND function and supplement the existing family of CMOS gates. CD4082Btypes are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes). Features:- Medium-Speed Operation - t PLH , t PHL = 60 ns (typ.) at V DD = 10 V 100% tested for quiescent current at 20 V Maximum input current of 1 µA at 18 V over full package-temperature range: 100 nA at 18 V and 25°C Noise margin (full package-temperature range) = 1 V at V DD = 5 V 2 V at V DD = 10 V 2.5 V at V DD = 15 V Standardized, symmetrical output characteristics 5-V, 10-V, and 15-V parametric ratings Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices" Specifications:- Parameter Specification Part number CD4082B Technology Family CD4000 VCC (Min) (V) 3 VCC (Max) (V) 18 Channels (#) 2 Inputs per channel 4 Input type Standard CMOS Output type Push-Pull Features Standard Speed (tpd > 50ns) Data rate (Max) (Mbps) 8 IOL (Max) (mA) 6.8 IOH (Max) (mA) -6.8 Package size: mm2:W x L (PKG) 14PDIP: 181 mm2: 9.4 x 19.3 (PDIP|14) Rating See Data Sheet Operating temperature range (C) -55 to 125 Package Group PDIP|14 Related Document:- CD4082 IC Datasheet
