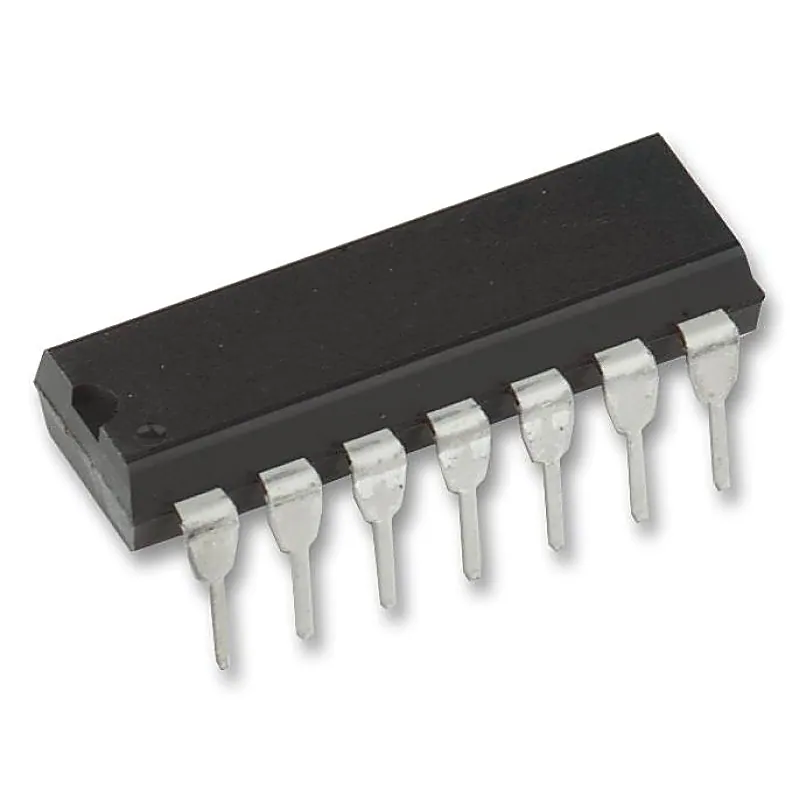

CD4093 Quad 2-Input NAND Schmitt Trigger IC DIP-14 Package

CD4093 consists of four Schmitt-trigger circuits. Each circuit functions as a two-input NAND gate with Schmitt-trigger action on both inputs. The gate switches at different points for positive- and negative-going signals. The difference between the positive voltage (V P ) and the negative voltage (V N ) is defined as hysteresis voltage (V H ) (see Fig. 2). The CD4093 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes). Features:- Schmitt-trigger action on each input with no external components Hysteresis voltage typically 0.9 V at V DD = 5 V and 2.3 V at V DD = 10 V Noise immunity greater than 50% No limit on input rise and fall times Standardized, symmetrical output characteristics 100% tested for quiescent current at 20 V Maximum input current of 1 µA at 18 V over full package-temperature range, 100 nA at 18 V and 25°C 5-V, 10-V, and 15-V parametric ratings Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices" Applications: Wave and pulse shapers High-noise-environment systems Monostable multivibrators Astable multivibrators NAND logic Specifications:- Parameter Specification Part number CD4093B Technology Family CD4000 VCC (Min) (V) 3 VCC (Max) (V) 18 Channels (#) 4 Inputs per channel 2 Input type Schmitt-Trigger Output type Push-Pull Features Standard Speed (tpd > 50ns) Data rate (Max) (Mbps) 8 IOL (Max) (mA) 6.8 IOH (Max) (mA) -6.8 Package size: mm2:W x L (PKG) 14PDIP: 181 mm2: 9.4 x 19.3 (PDIP|14) Rating See Data Sheet Operating temperature range (C) -55 to 125 Package Group PDIP|14 Related Document:- CD4093 IC Datasheet
