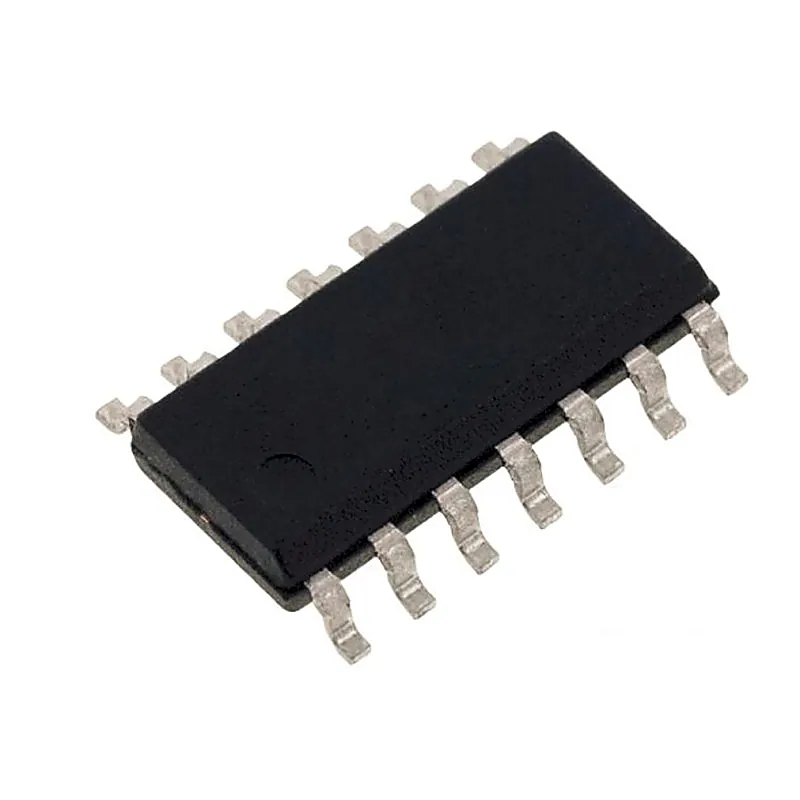

CD4093 IC - (SMD Package) - Quad 2-Input NAND Schmitt Trigger IC

CD4093 IC - (SMD Package) - Quad 2-Input NAND Schmitt Trigger IC
The CD4093 consists of four Schmitt-trigger circuits. Each circuit functions as a 2-input NAND gate with Schmitttrigger action on both inputs. The gate switches at different points for positive and negative-going signals. The difference between the positive (VT +) and the negative voltage (VT −) is
+ 18% GST (added at checkout)
In stock — 2392 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The CD4093 consists of four Schmitt-trigger circuits. Each circuit functions as a 2-input NAND gate with Schmitttrigger action on both inputs. The gate switches at different points for positive and negative-going signals. The difference between the positive (VT +) and the negative voltage (VT −) is defined as hysteresis voltage (VH). All outputs have equal source and sink currents and conform to standard B-series output drive. Features:- • Wide supply voltage range: 3.0V to 15V • Schmitt-trigger on each input with no external components • Noise immunity greater than 50% • Equal source and sink currents • No limit on input rise and fall time • Standard B-series output drive • Hysteresis voltage (any input) TA = 25°C Typical: VDD = 5.0V, VH = 2.2V, VH = 1.5V, VDD = 15V, VDD = 10V, VH = 2.7V Guaranteed: VH = 0.1 VDD Applications:- • Wave and pulse shapers • High-noise-environment systems • Monostable multi vibrators • Astable multi vibrators • NAND logic Ordering Code Specification:- Symbol Parameter Values VDD DC Supply Voltage -0.5V to +20V VIN Input Voltage −0.5 to VDD +0.5 VDC TS Storage Temperature −65°C to +150°C PD Power Dissipation 700 mW TL Lead Temperature 260°C Related Document:- CD4093 SMD Data Sheet
