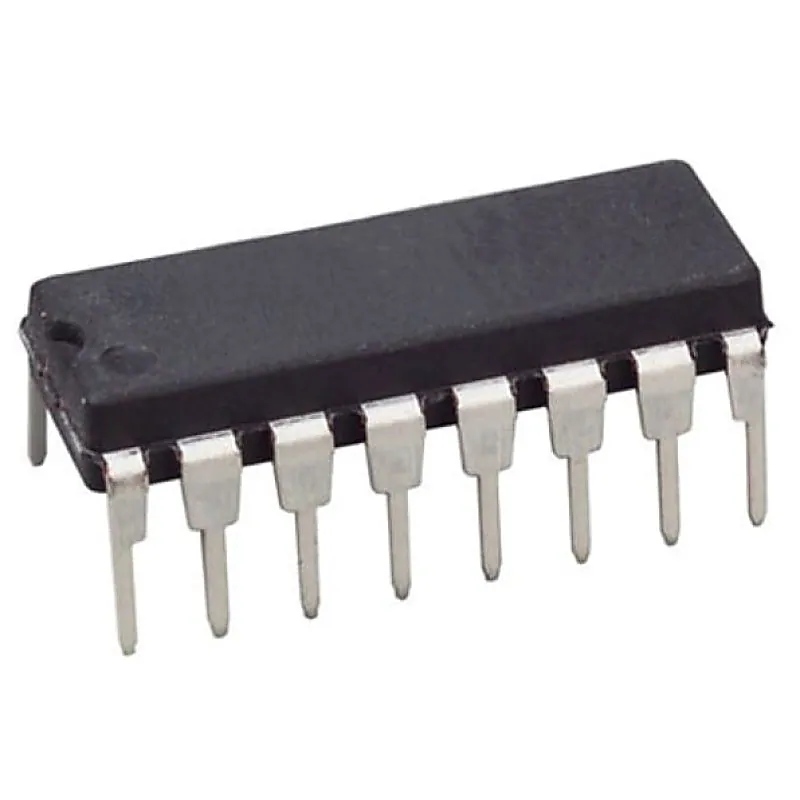

CD4504 Hex Voltage Level Shifter IC DIP-16 Package

CD4504 hex voltage level-shifter consists of six circuits which shift input signals from the V CC logic level to the V DD logic level. To shift TTL signals to CMOS logic levels, the SELECT input is at the V CC HIGH logic state. When the SELECT input is a LOW logic state, each circuit translates signals from one CMOS level to another. The CD4504 types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (M, M96, and MT suffixes), and 16-lead thin shrink small-outline packages (PW and PWR suffixes). Features:- Independence of power-supply sequence considerations - V CC can exceed V DD ; input signals can exceed both V CC and V DD Up and down level-shifting capability Shiftable input threshold for either CMOS or TTL compatibility Standardized symmetrical output characteristics 100% tested for quiescent current @ 20 V Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C 5V, 10 V, and 15 V parametric ratings Meets all requirements of JEDEC Standard No. 13B, "Standard Specifications for Description of ’B’ Series CMOS Devices" Specifications:- Parameter Specification Part number CD4504 Technology Family CD4000 Bits (#) 6 Voltage (Nom) (V) 5 F @ nom voltage (Max) (MHz) 50 ICC @ nom voltage (Max) (mA) 0.001 IOL (Max) (mA) 6.8 IOH (Max) (mA) -6.8 Schmitt trigger No tpd @ nom Voltage (Max) (ns) 2.9 Rating See Data Sheet Package Group PDIP|16 Related Document:- CD4504 IC Datasheet
