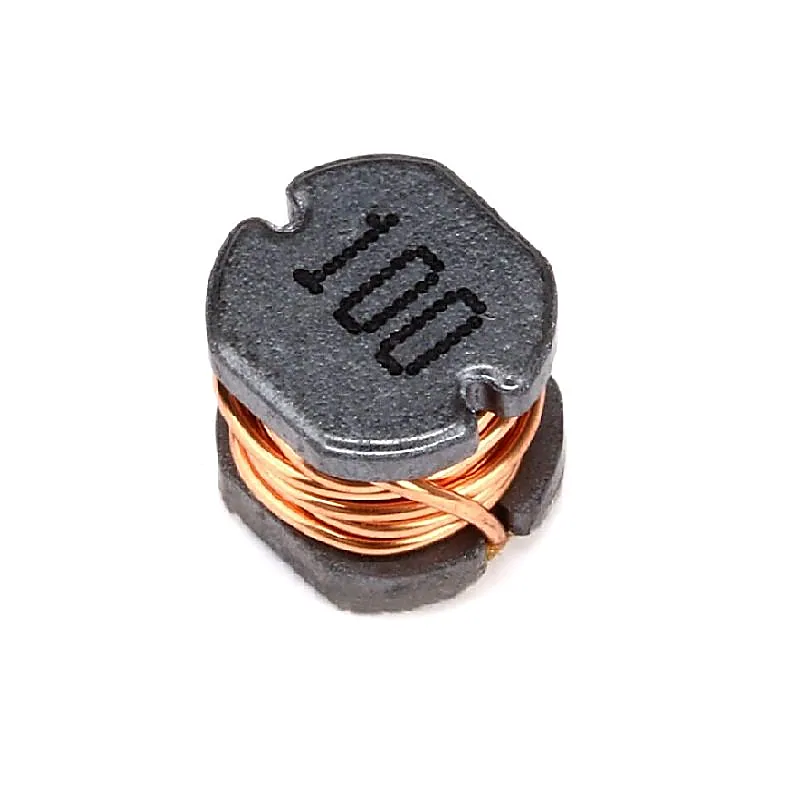

CD54 10uH (100) SMD Power Inductor

A CD54 10uH Surface Mount Power Inductor (10 microH) is a 2-terminal passive device having a coil of wire wound wrapped around a core. A core may be magnetic metal or air to produce a high inductance in the wire. The terminals are pads for surface mounting. When we apply a current through the inductor, a magnetic field is generated around it. The magnetic field generated by using a magnetic core will be much much stronger than others. Applications: Useful in Mobile phone, PDA, MP3, DSC/DVC, portable DVD etc as DC-DC Converter inductors. Features: Ferrite drum core construction. Magnetically unshield. Moisture Sensitivity Level: 1 Halogen Free available. Operating temperature range: -40°C+100°C (including coils self temperature rise) Storage temperature range: -40°C+100°C. Solder reflow temperature: 260 peak. LxWxH: 5 x 5 x 4 mm Product weight: 0.4 gm(Ref.) Package Includes: 1 x CD54 10uH Surface Mount Power Inductor (10 microH) Specifications: Material Core Ferrite Inductance(uH) 10 Tolerance(%) 20 Current Rating (A) 1.44 DC Resistance (DCR)(mΩ) at 20°C 100 Frequency (MHz) 2.52 Mount Surface Mount. Operating Temperature (°C) -40 ~ 100
