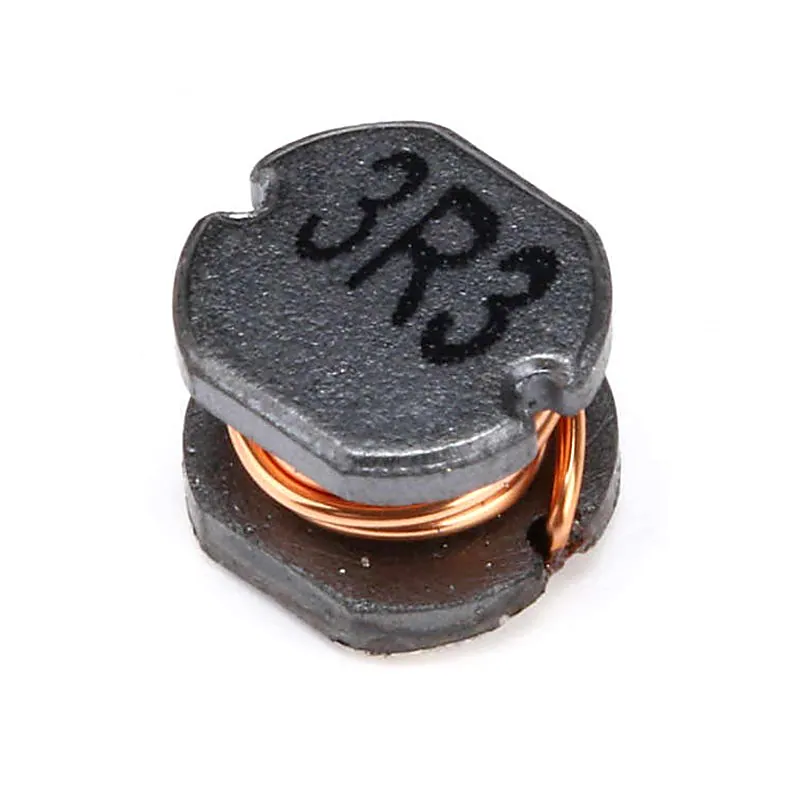

CD54 3.3uH (3R3) SMD Power Inductor

A CD54 3.3uH Surface Mount Power Inductor (3.3 microH) is a 2-terminal passive device having a coil of wire wound wrapped around a core. A core may be magnetic metal or air to produce a high inductance in the wire. The terminals are pads for surface mounting. When we apply a current through the inductor, a magnetic field is generated around it. The magnetic field generated by using a magnetic core will be much much stronger than others. Applications: Useful in Mobile phone, PDA, MP3, DSC/DVC, portable DVD etc as DC-DC Converter inductors. Features: Ferrite drum core construction. Magnetically unshield. Moisture Sensitivity Level: 1 Halogen Free available. Operating temperature range: -40°C+100°C (including coils self temperature rise) Storage temperature range: -40°C+100°C Solder reflow temperature: 260 peak. LxWxH: 5 x 5 x 4 mm Product weight: 0.4 gm(Ref.) Package Includes: 1 x CD54 3.3uH Surface Mount Power Inductor (3.3 microH) Specifications: Material Core Ferrite Inductance(uH) 3.3 Tolerance(%) 20 Current Rating (A) 1.5 DC Resistance (DCR)(mΩ) at 20°C 101 Frequency (KHz) 100 Mount Surface Mount. Operating Temperature (°C) -40 ~ 100
