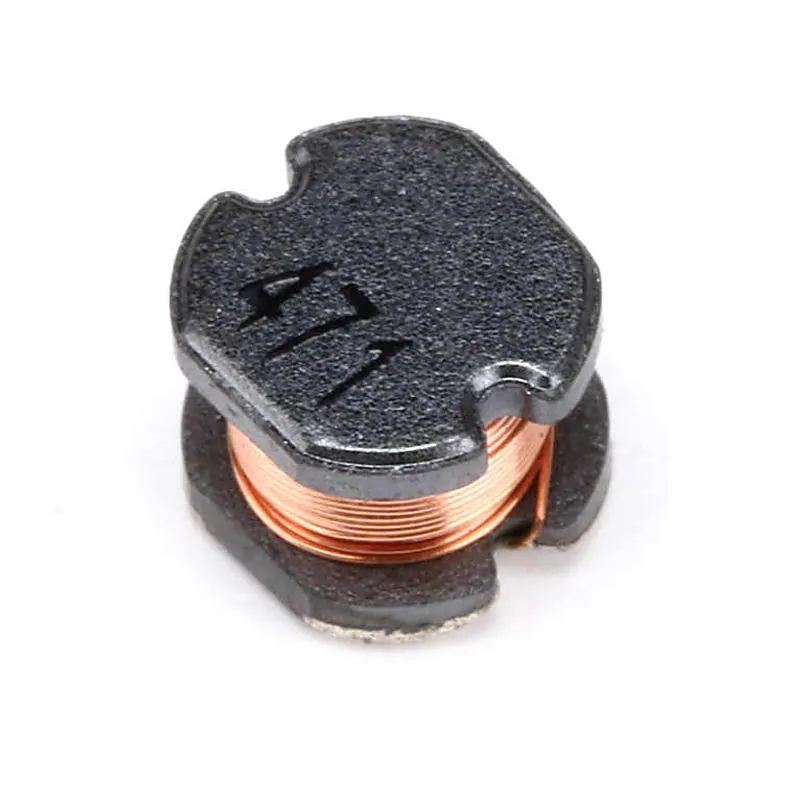

CD54 470uH (471) SMD Power Inductor

A CD54 470uH Surface Mount Power Inductor (470 microH) is a 2-terminal passive device having a coil of wire wound wrapped around a core. A core may be magnetic metal or air to produce a high inductance in the wire. The terminals are pads for a surface mounting. When we apply a current through the inductor, a magnetic field is generated around it. The magnetic field generated by using a magnetic core will be much much stronger than others. Applications: Useful in Mobile phone, PDA, MP3, DSC/DVC, portable DVD etc as DC-DC Converter inductors. Features: Ferrite drum core construction. Magnetically unshield. Moisture Sensitivity Level: 1 Halogen Free available. Solder reflow temperature: 260 peak. Package Includes: 1 x CD54 470uH Surface Mount Power Inductor (470 microH) Specifications: Material Core Ferrite Inductance(uH) 470 Tolerance(%) 20 Current Rating (A) 0.23 DC Resistance (DCR)(mΩ) at 20°C 2.3 Test Frequency (Hz) 100K @ 1V Mount Surface Mount. Operating Temperature (°C) -40 ~ 100 Length (mm) 5 Width (mm) 5 Height (mm) 4 Weight (gm) 1 (approx)
