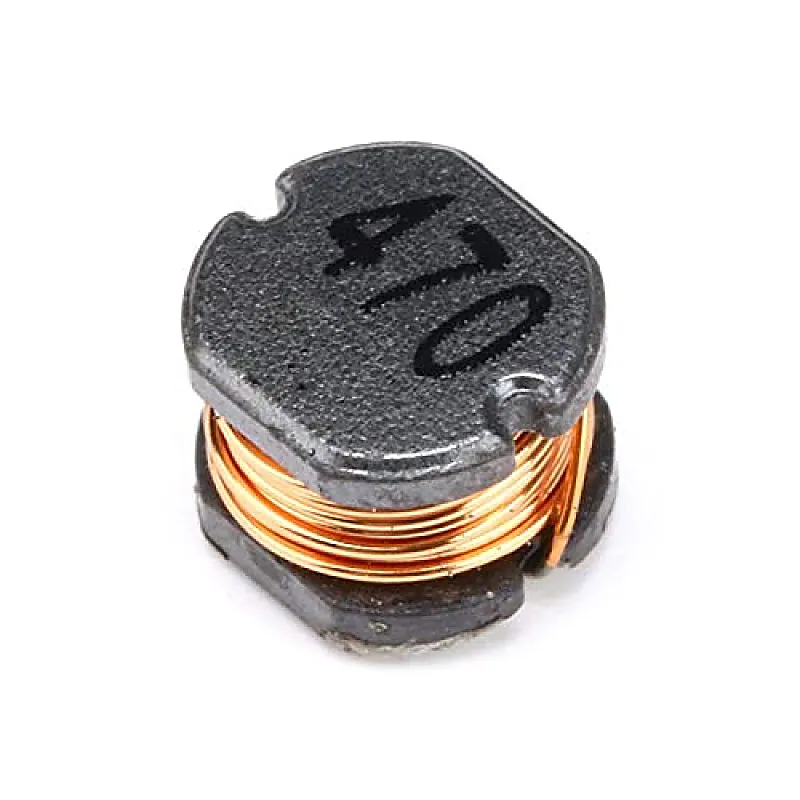

CD54 47uH (470) SMD Power Inductor

A CD54 47uH Surface Mount Power Inductor (47 microH) is a 2-terminal passive device having a coil of wire wound wrapped around a core. A core may be magnetic metal or air to produce a high inductance in the wire. The terminals are pads for a surface mounting. When we apply a current through the inductor, a magnetic field is generated around it. The magnetic field generated by using a magnetic core will be much much stronger than others. Applications: Useful in Mobile phone, PDA, MP3, DSC/DVC, portable DVD etc as DC-DC Converter inductors. Features: Ferrite drum core construction. Magnetically unshield. Moisture Sensitivity Level: 1 Halogen Free available. Operating temperature range: -40°C+100°C (including coils self temperature rise) Storage temperature range: -40°C+100°C Solder reflow temperature: 260 peak. LxWxH: 6.1 x 5.5 x 4.85 mm Max. Product weight: 0.4 gm(Ref.) Package Includes: 1 x CD54 47uH Surface Mount Power Inductor (47 microH) Specifications: Material Core Ferrite Inductance(uH) 47 Tolerance(%) 15 Current Rating (mA) 720 DC Resistance (DCR)(mΩ) at 20°C 370 Test Frequency (MHz) 2.52 Mount Surface Mount. Operating Temperature (°C) -40 ~ 100
