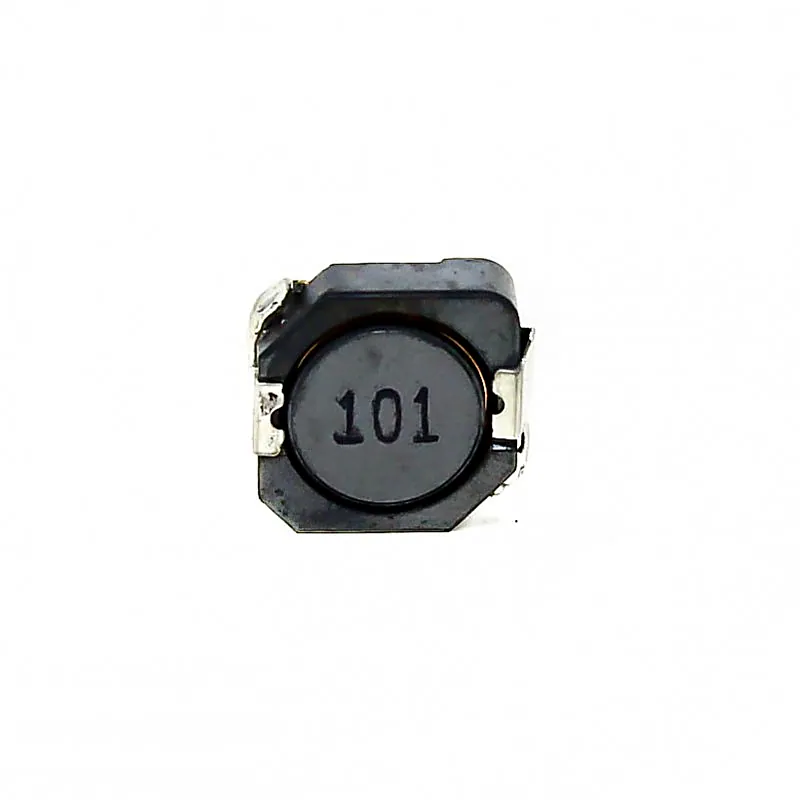

CDRH104R 100uH (101) SMD Power Inductor

CDRH104R 100uH Power Inductor is a passive electronic device. It has a ferrite drum and copper wire wound on it. Terminals of this inductor, also called pads are designed for surface mounting. Also, the inductor has magnetic shielding. Moreover, this inductor has the highest moisture sensitivity level of 1. Applications: Ideally, this inductor finds its use in notebook PCs, Game Machines, etc as DC-DC converter inductor. Features: Ferrite core drum construction. Magnetically shielded. Moisture sensitivity level: 1. Operating temperature range: -40°C+100°C (including coils self temperature rise) Storage temperature range: -40°C+100°C Package Includes: 1 x CDRH104R 100uH SMD Power Inductor Specifications: Core Ferrite Inductance (uH) 100 Tolerance (%) 30 Current Rating (A) 1.33 DC Resistance (DCR) (mΩ) at 20 304 Length (mm) 10 Width (mm) 10 Height (mm) 4 Weight (gm) 1 (approx)
