CDRH127 220uh (221) SMD Power Inductor
CDRH127 220uh (221) SMD Power Inductor

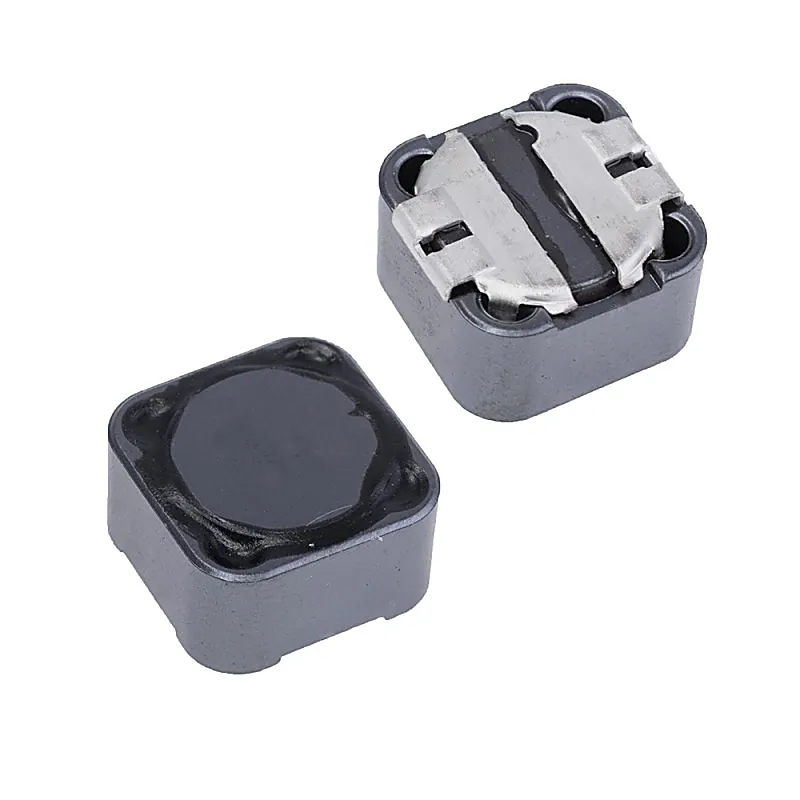

CDRH127 220uH Power Inductor is a passive electronic device. It has a ferrite drum and copper wire wound on it. Terminals of this inductor, also called pads are designed for surface mounting. Also, the inductor has magnetic shielding. Moreover, this inductor has the highest moisture sensitivity leve
+ 18% GST (added at checkout)
In stock — 206 units ready
- Ferrite drum core construction.
- Magnetically shielded.
- Package: CDRH127
- Inductance: 220uh
- Printed: 221
- Tolerance(%): 20%
- DC Resistance (DCR): 390 mOhm Max
- Current Rating: 1.16 Ampere
- L×W×H: 12×12×7.0 mm
- Product weight: 4 gms.
- Moisture Sensitivity Level: 1
- Operating temperature range: -40℃～+100℃
- Storage temperature range: -40℃～+100℃
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
CDRH127 220uH Power Inductor is a passive electronic device. It has a ferrite drum and copper wire wound on it. Terminals of this inductor, also called pads are designed for surface mounting. Also, the inductor has magnetic shielding. Moreover, this inductor has the highest moisture sensitivity level of 1. Applications: Ideally, this inductor finds its use in notebook PCs, Game Machines, etc. as DC-DC converter inductor. Package Includes: 1 x CDRH127 220uh (221) SMD Power Inductor. Features & Specifications: Ferrite drum core construction. Magnetically shielded. Package: CDRH127 Inductance: 220uh Printed: 221 Tolerance(%): 20% DC Resistance (DCR): 390 mOhm Max Current Rating: 1.16 Ampere L×W×H: 12×12×7.0 mm Product weight: 4 gms. Moisture Sensitivity Level: 1 Operating temperature range: -40℃～+100℃ Storage temperature range: -40℃～+100℃
