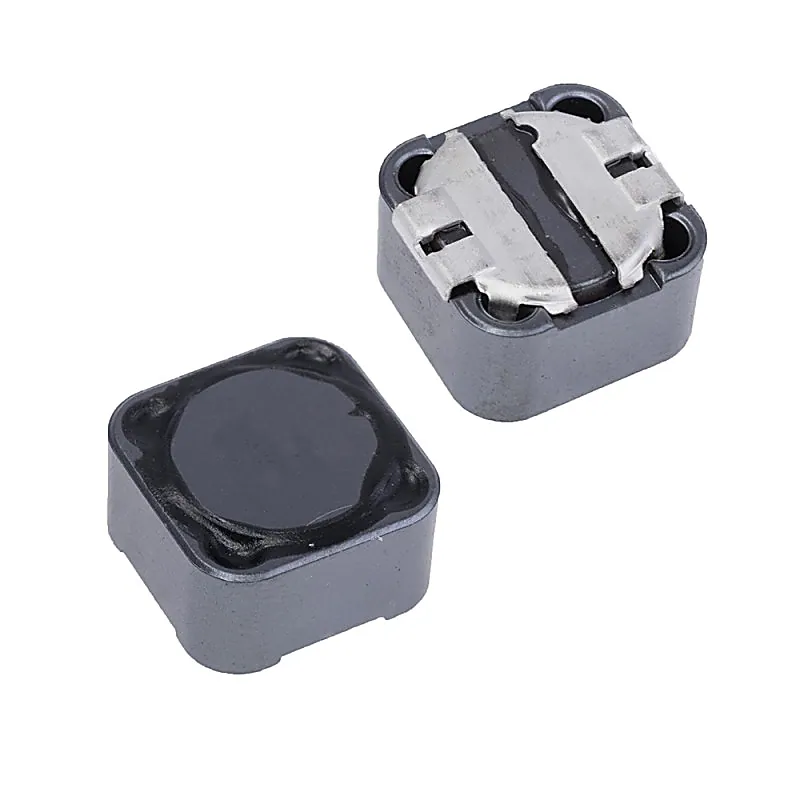

CDRH127 22uh (220) SMD Power Inductor
CDRH127 22uh (220) SMD Power Inductor
CDRH127 22uh Power Inductor is a passive electronic device. It has a ferrite drum and copper wire wound on it. Terminals of this inductor, also called pads are designed for surface mounting. Also, the inductor has magnetic shielding. Moreover, this inductor has the highest moisture sensitivity level
+ 18% GST (added at checkout)
In stock — 3136 units ready
- Ferrite drum core construction.
- Magnetically shielded.
- Package: CDRH127
- Inductance: 22uh
- Printed: 220
- Tolerance(%): 20%
- DC Resistance (DCR): 43.2 mOhm Max
- Current Rating: 3.6 Ampere
- L×W×H: 12×12×7.0 mm
- Product weight: 4 gms.
- Moisture Sensitivity Level: 1
- Operating temperature range: -40℃～+100℃
- Storage temperature range: -40℃～+100℃
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
CDRH127 22uh Power Inductor is a passive electronic device. It has a ferrite drum and copper wire wound on it. Terminals of this inductor, also called pads are designed for surface mounting. Also, the inductor has magnetic shielding. Moreover, this inductor has the highest moisture sensitivity level of 1. Applications: Ideally, this inductor finds its use in notebook PCs, Game Machines, etc. as DC-DC converter inductor. Package Includes: 1 x CDRH127 22uh (220) SMD Power Inductor. Features & Specifications: Ferrite drum core construction. Magnetically shielded. Package: CDRH127 Inductance: 22uh Printed: 220 Tolerance(%): 20% DC Resistance (DCR): 43.2 mOhm Max Current Rating: 3.6 Ampere L×W×H: 12×12×7.0 mm Product weight: 4 gms. Moisture Sensitivity Level: 1 Operating temperature range: -40℃～+100℃ Storage temperature range: -40℃～+100℃
