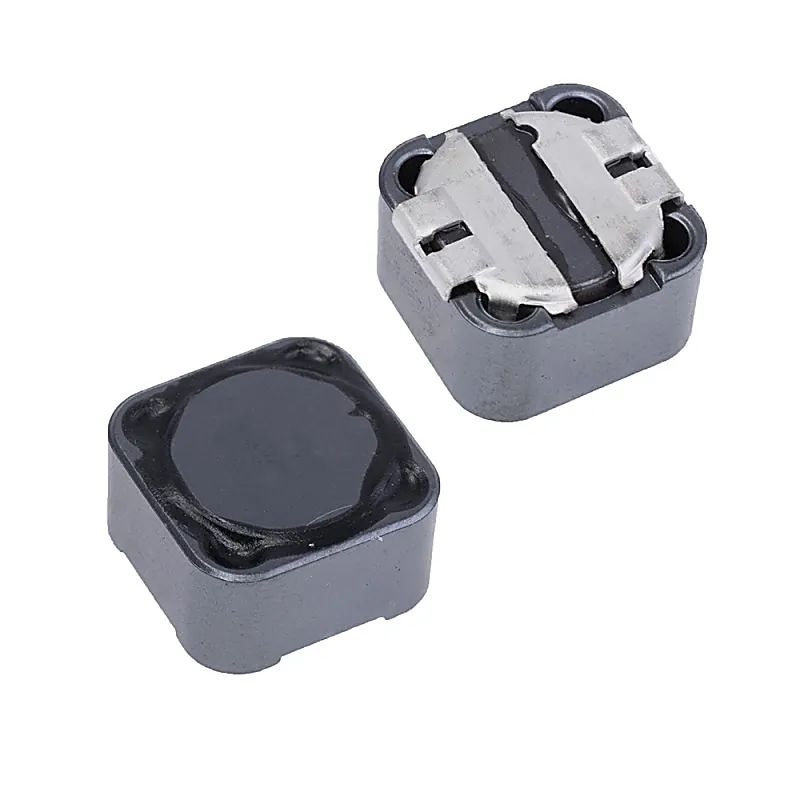

CDRH127 3.3uh (3R3) SMD Power Inductor
CDRH127 3.3uh (3R3) SMD Power Inductor
CDRH127 3.3uh Power Inductor is a passive electronic device. It has a ferrite drum and copper wire wound on it. Terminals of this inductor, also called pads are designed for surface mounting. Also, the inductor has magnetic shielding. Moreover, this inductor has the highest moisture sensitivity leve
+ 18% GST (added at checkout)
In stock — 4654 units ready
- Ferrite drum core construction.
- Magnetically shielded.
- Package: CDRH127
- Inductance: 3.3uh
- Printed: 3R3
- Tolerance(%): 20%
- DC Resistance (DCR): 13.5 mOhm Max
- Current Rating: 7.5 Ampere
- L×W×H: 12×12×7.0 mm
- Product weight: 4 gms.
- Moisture Sensitivity Level: 1
- Operating temperature range: -40℃～+100℃
- Storage temperature range: -40℃～+100℃
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
CDRH127 3.3uh Power Inductor is a passive electronic device. It has a ferrite drum and copper wire wound on it. Terminals of this inductor, also called pads are designed for surface mounting. Also, the inductor has magnetic shielding. Moreover, this inductor has the highest moisture sensitivity level of 1. Applications: Ideally, this inductor finds its use in notebook PCs, Game Machines, etc. as DC-DC converter inductor. Package Includes: 1 x CDRH127 3.3uh (3R3) SMD Power Inductor. Features & Specifications: Ferrite drum core construction. Magnetically shielded. Package: CDRH127 Inductance: 3.3uh Printed: 3R3 Tolerance(%): 20% DC Resistance (DCR): 13.5 mOhm Max Current Rating: 7.5 Ampere L×W×H: 12×12×7.0 mm Product weight: 4 gms. Moisture Sensitivity Level: 1 Operating temperature range: -40℃～+100℃ Storage temperature range: -40℃～+100℃
