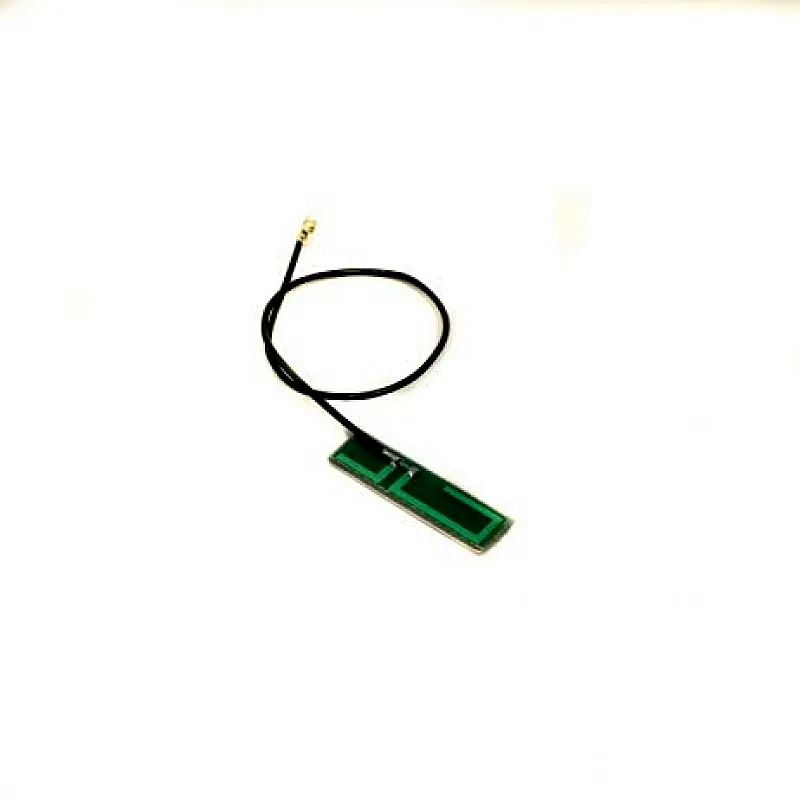

Chip Antenna 2400MHz
Chip Antenna 2400MHz
This is PCB Antenna having a frequency of 24002483 MHz and 1.8 dBi gain. PCB Antenna is a wireless device to receive and transmit signals, it has been widely used in telecommunication to communicate. One of the main reasons to use a PCB (printed circuit board) antenna is the reduced overall cost of
+ 18% GST (added at checkout)
In stock — 535 units ready
- Compact Size
- High quality
- Low cost
- 3M high-quality adhesive
- Masking for corrosion-free
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This is PCB Antenna having a frequency of 24002483 MHz and 1.8 dBi gain. PCB Antenna is a wireless device to receive and transmit signals, it has been widely used in telecommunication to communicate. One of the main reasons to use a PCB (printed circuit board) antenna is the reduced overall cost of the radio module. Application: Wi-fi, Bluetooth, Zig-bee, ISM. Features: Compact Size High quality Low cost 3M high-quality adhesive Masking for corrosion-free Package Includes: 1 x Chip Antenna 2400MHz Specifications :- Model LWC-2400-CHIP-03 (V1.0) Frequency Range 2400 ~ 2483 MHz Gain ~1.8 dBi Impedance () 50 VSWR < 2.0 Polarization Linear Power Handling (W) 10 HPBW H: 3600 / V: 30 Cable 0.81 or 1.13mm Mini Coaxial Connector MHF1 Operating Temperature (C) -30 to 60 Humidity 5 95% Length (mm) 27 Width (mm) 7 Height (mm) 2 Weight (gm) 5
