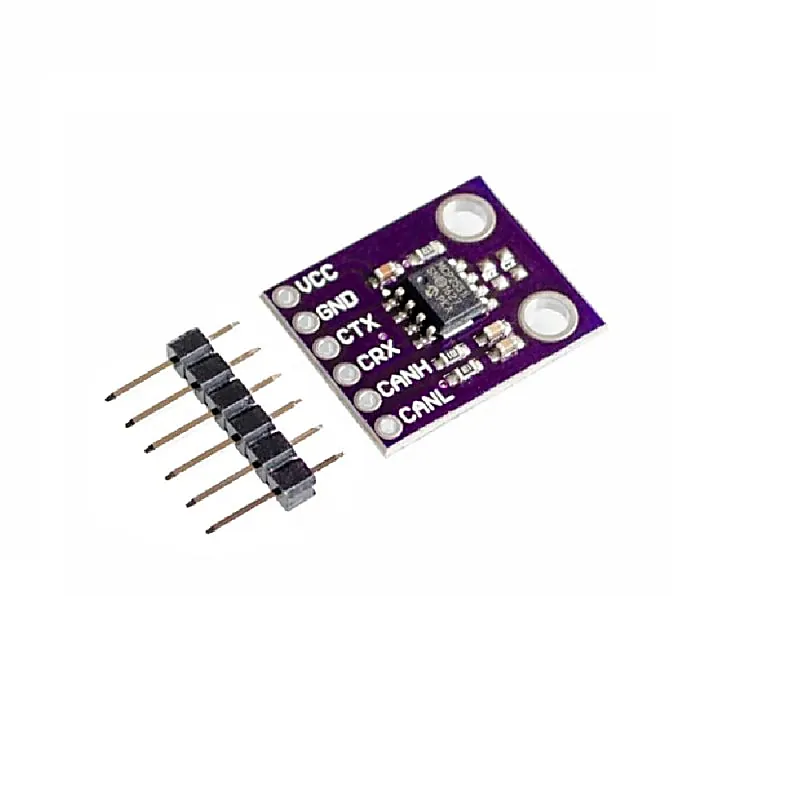

CJMCU-2551 MCP2551 CAN Protocol Controller High-speed Interface Module

The CJMCU-2551 MCP2551 CAN Protocol Controller High-speed Interface Module is a high speed CAN, with fault-tolerant capabilities. It acts as an interfacing device between CAN protocol and the physical bus. The device, MCP2551 provides differential transmit and receive capabilities and is compliant with the ISO-11898, including the 24V requirements. Data transfer rate of up to 1Mb/s is achievable with this module. The module also provides a buffer between the CAN controller and the high-voltage spikes that can be generated on the CAN bus by outside sources like EMI, ESD, electrical transients, etc. Features: Supports 1 Mb/s operation Implements ISO-11898 standard physical layer requirements Suitable for 12V and 24V systems The externally-controlled slope for reduced RFI emissions Detection of ground fault (permanent Dominant) on TXD input Power-on Reset and voltage brown-out protection An unpowered node or brown-out event will not disturb the CAN bus Low current standby operation Protection against damage due to short-circuit conditions (positive or negative battery voltage) Protection against high-voltage transients Automatic thermal shutdown protection Up to 112 nodes can be connected High-noise immunity due to differential bus implementation Temperature ranges: Industrial (I): -40C to +85C Extended (E): -40C to +125C Package Includes: 1 xCJMCU-2551 MCP2551 CAN Protocol Controller High-speed Interface Module Specifications :- Model MCP2551 Material Metal and plastic Input Voltage (V) 7 Operating Temperature (C) -40 to 125 Storage condition () -55 to 150
