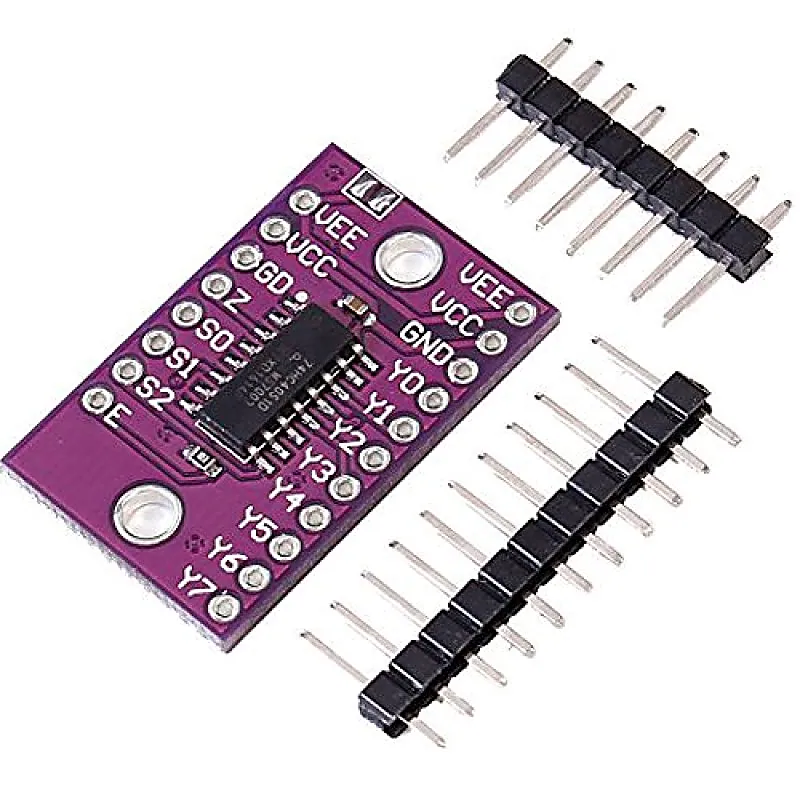

CJMCU-4051 74HC4051 8 Channel Analog Multiplexer/Demultiplexer Breakout Board for Arduino

This is CJMCU-4051 74HC4051 8 Channel Analog Multiplexer/Demultiplexer Sensor Module Breakout Board for Arduino. 74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs (S0, S1, and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Specifications and Features : 1.Wide Analog Input Voltage Range: +/-5V 2.Low ON Resistance: 80 ohm (type) at Vcc = 4.5V; 70 ohm (type) at Vcc = 6.0V; 60 ohm (type) at Vcc = 9.0V 3.Logic Level Translation: to enable 5V to communicate with +/-5V analog signals 4.Board Size: 30 x 19 mm Package Includes : 1 x 8 Channel Analog Multiplexer Demultiplexer Sensor Module with berg Pins. Specifications :- Input Supply voltage (V) 5 Length (mm) 30 Width (mm) 19 Height (mm) 3.5 Weight (gm) 3
