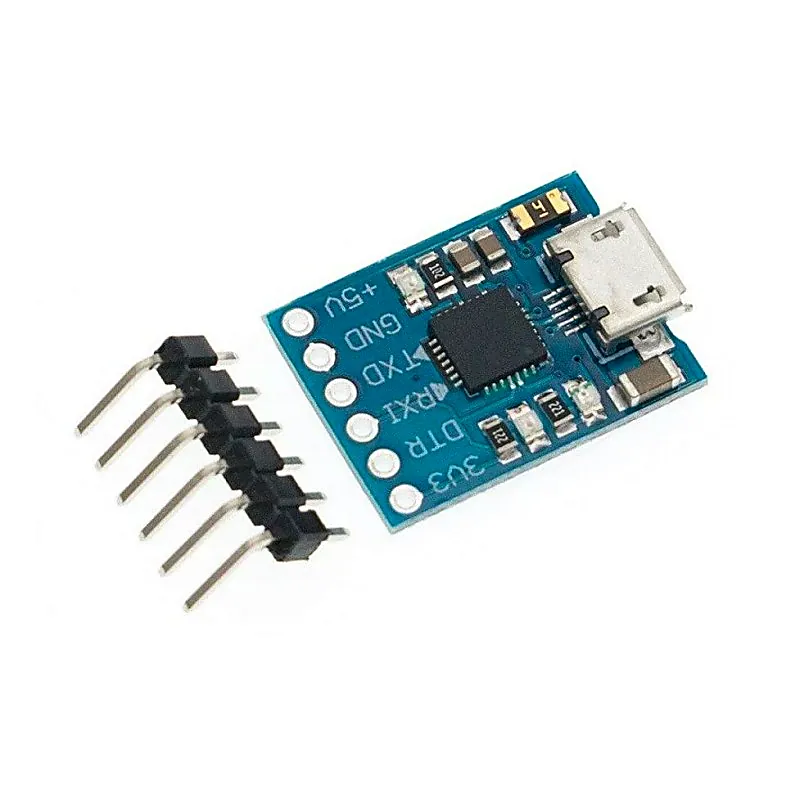

CP2102 Micro USB to UART TTL Module Serial Converter UART STC Replace FT232 - 6 Pin
CP2102 Micro USB to UART TTL Module Serial Converter UART STC Replace FT232 - 6 Pin
The original chip CP2102, generate a COM port after installing the driver. Then the standard input MICRO MINI-USB cable is connected to the computer USB interface, with 3.3V and 5V two power output With a resettable fuse. In the event of accidental short-circuit can effectively protect your device a
+ 18% GST (added at checkout)
In stock — 31 units ready
- Embedded USB transceiver, no external circuit device.
- Containing clock circuit, no external circuit device; contains power-on reset circuit,
- The on-chip voltage regulator within the 3.3V output.
- Meet the USB2.0 specification requirements; SUSPEND pins support USB suspend state.
- Asynchronous serial data bus compatible with all handshakes and modulation controller interface signals.
- The support data format is 8 data bits, 1 stop bit and the parity bit.
- Connotation 512 byte receive buffer and 512 bytes transmit buffer, Supports hardware or X-ON / X-OFF Handshake
- 5P – A type USB USB specification 2.0 compliant with full-speed 12Mbps.
- Standard USB type A male and TTL 5pin connector.
- 5pins for 3.3V,TXD,RXD,GND & 5V All handshaking and modem interface signals
- Baud rates: 300 bps to 1.5Mbps.
- Byte receives buffer; 640 byte transmit buffer.
- Hardware or X-On/X-Off handshaking supported.
- Event character support Line break transmission.
- USB suspend states supported via SUSPEND pins.
- Temperature Range: -40degto +85deg Supports Windows 98SE, 2003, XP, Vista, Window7, Mac OSX , Linux 2.6.x and 2.4.36 main
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The original chip CP2102, generate a COM port after installing the driver. Then the standard input MICRO MINI-USB cable is connected to the computer USB interface, with 3.3V and 5V two power output With a resettable fuse. In the event of accidental short-circuit can effectively protect your device and computer USB port to download Onboard status indicators, receive indicator properly installed drive status indicator remains, send and receive indicator flashes when communicating with run LED indicator. Supports baud rates from 300bps ~ 1Mbps between the communication format support: 1) data bits 5,6,7,8; 2) support 1.5, 2 stop bits; 3) odd, even, mark, space, none parity Supported operating systems: Windows 8.1 / 7 / Vista / XP / 98, Mac OS-X / OS-9, Linux USB seat MICRO MINI-USB interface Block Chip components for the regular company of welding, stable quality, beautiful appearance with DTR trigger signal output can be directly Arduino pro mini ATMEGA328P and other Arduino board download traffic. Module size: 16mm x 20mm super small. Features:- Embedded USB transceiver, no external circuit device. Containing clock circuit, no external circuit device; contains power-on reset circuit, The on-chip voltage regulator within the 3.3V output. Meet the USB2.0 specification requirements; SUSPEND pins support USB suspend state. Asynchronous serial data bus compatible with all handshakes and modulation controller interface signals. The support data format is 8 data bits, 1 stop bit and the parity bit. Connotation 512 byte receive buffer and 512 bytes transmit buffer, Supports hardware or X-ON / X-OFF Handshake Specifications:- 5P – A type USB USB specification 2.0 compliant with full-speed 12Mbps. Standard USB type A male and TTL 5pin connector. 5pins for 3.3V,TXD,RXD,GND & 5V All handshaking and modem interface signals Baud rates: 300 bps to 1.5Mbps. Byte receives buffer; 640 byte transmit buffer. Hardware or X-On/X-Off handshaking supported. Event character support Line break transmission. USB suspend states supported via SUSPEND pins. Temperature Range: -40degto +85deg Supports Windows 98SE, 2003, XP, Vista, Window7, Mac OSX , Linux 2.6.x and 2.4.36 main Package Includes:- 1 x CP2102 Micro USB to UART TTL Module Serial Converter UART STC Replace FT232 - 6 Pin
