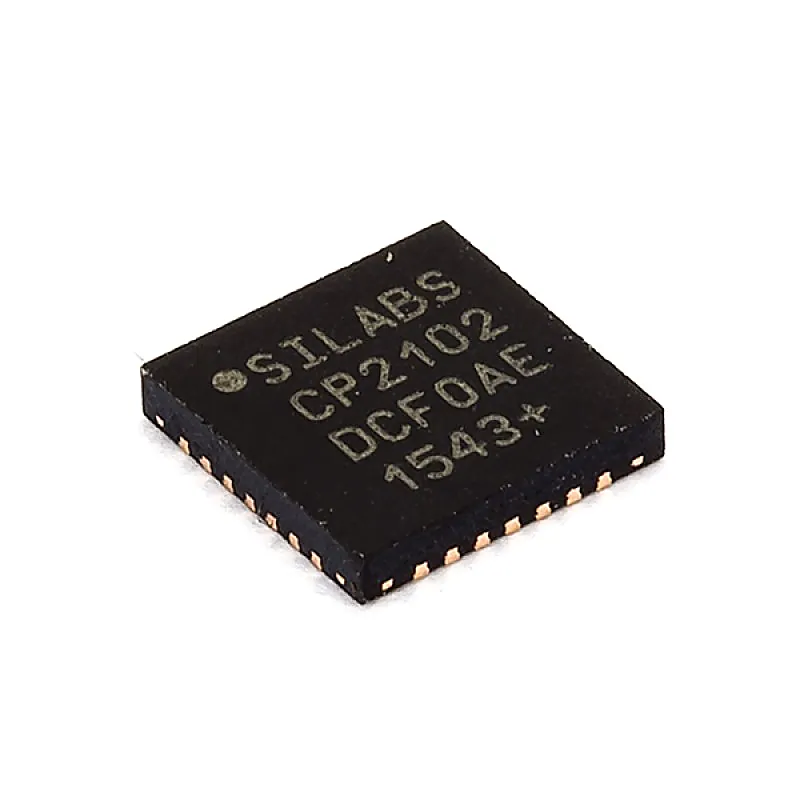

CP2102 (SMD QFN-28 Package) USB to UART Bridge Controller IC

The CP2102 USB to UART Bridge provides a complete plug and play interface solution that includes royalty-free drivers. This USB 2.0 compliant device includes 0 digital I/O pins and is availble in a 5x5 mm QFN28 package. Features:- Integrated USB transceiver; no external resistors required Integrated clock; no external crystal required Internal 1024-byte programmable ROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings On-chip power-on reset circuit On-chip voltage regulator - 3.3 V output (CP2102) Specifications:- Parameter Min Max Unit Ambient Temperature under Bias TBIAS -55 125 ºC Storage Temperature TSTG -65 150 ºC Voltage on VDD with respect to GND VDD -0.3 4.2 V Maximum Total Current through VDD and GND - 500 mA Maximum Output Current sunk by RST or any I/O pin - 100 mA Related Document:- CP2102 IC Datasheet
