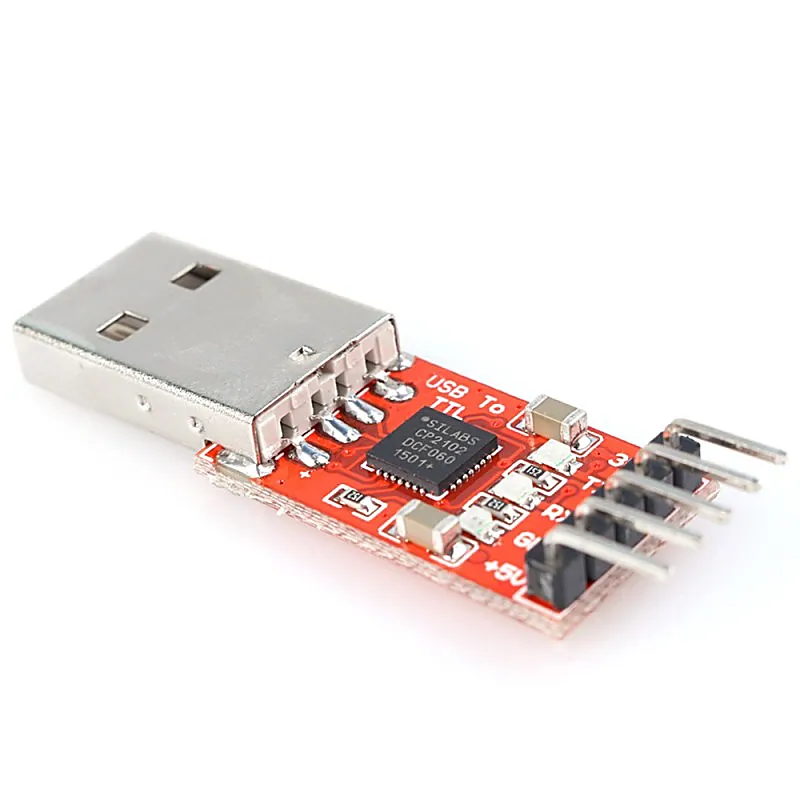

CP2102 USB 2.0 to TTL UART Serial convertor Module

CP2102 chip is a single chip USB to UART bridge IC. It requires minimal external components. CP2102 can be used to migrate legacy serial port based devices to USB. Features:- Stable and reliable chipset CP2102. USB specification 2.0 compliant with full-speed 12Mbps. Standard USB type A male and TTL 6pin connector. 6pins for 3.3V, RST, TXD, RXD, GND & 5V. Baud rates: 300 bps to 1.5 Mbps Byte receive buffer; 640 byte transmit buffer. Hardware or X-On/X-Off handshaking supported. Event character support Line break transmission. USB suspend states supported via SUSPEND pins. Temperature Range: -40 to +85. Size: 42mm X 15mm. Weight: 4g Pinouts:- TX = Connect to Transmit Pin(TXD) of Micro controller. This pin is RX pin of CP2102 on board. RX = Connect to Receive Pin(RXD) of Micro controller. This pin is TX pin of CP2102 on board. RST = Normally Unconnected. Reset Pin for CP2102. Initiate a system reset by driving this pin low for atleast 15 µs. GND = Should be common to microcontroller ground. 3V3 = Optional output to power external circuit upto 50mA. 5V = Optional output to power external circuit upto 100mA
