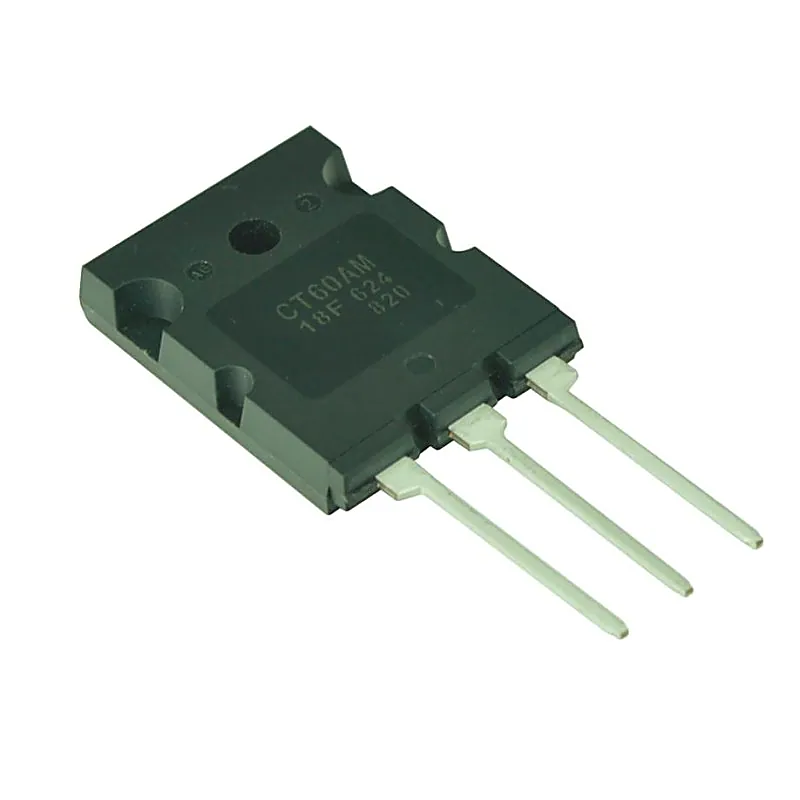

CT60AM-18F IGBT - 900V 60A High Voltage Current IGBT
CT60AM-18F IGBT - 900V 60A High Voltage Current IGBT
The CT60AM-18F is an Insulated Gate Bipolar Transistor which is a simple drive and has VCES of 900V, IC of 60A and Integrated fast-recovery diode. The CT60AM-18F has a low VCE Saturation Voltage and small tail loss. Applications:- • Microwave oven • Electromagnetic cooking devices • Rice-cookers • V
+ 18% GST (added at checkout)
In stock — 488 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The CT60AM-18F is an Insulated Gate Bipolar Transistor which is a simple drive and has VCES of 900V, IC of 60A and Integrated fast-recovery diode. The CT60AM-18F has a low VCE Saturation Voltage and small tail loss. Applications:- • Microwave oven • Electromagnetic cooking devices • Rice-cookers • Voltage-resonant inverter circuit electric appliances Specifications:- Symbol Parameter Ratings Units VCES Collector-Emitter Voltage 900 V VGES Gate-Emitter Voltage ±25 V VGEM Peak Gate-Emitter Voltage ±30 V IC Collector Current 60 A ICM Collector Current (Pulse) 120 A IE Emitter Current 40 A PC Maximum Power Dissipation 180 W Tj Junction Temperature –40 ~ +150 °C Tstg Storage Temperature –40 ~ +150 °C Related Document:- CT60AM-18F IGBT Data Sheet
