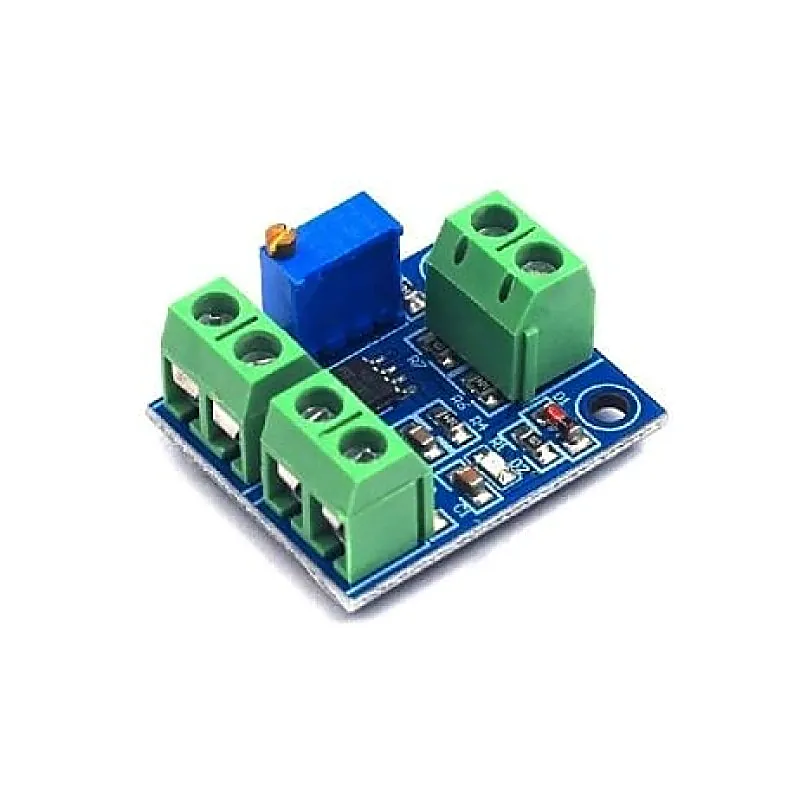

Current to Voltage Converter Module 0- 20mA Current Conversion to 0-5V Voltage
Current to Voltage Converter Module 0- 20mA Current Conversion to 0-5V Voltage
The Current to Voltage Converter Module is a versatile device designed for converting current signals into voltage signals. It supports a current input range of 0-20mA, converting it into a corresponding voltage output range of 0-5V. This module is ideal for interfacing sensors or devices that outpu
+ 18% GST (added at checkout)
In stock — 10 units ready
- Adopt single-chip microcomputer embedded technology;
- Realize the conversion of the current on the industrial label (0 ~ 20mA) to the voltage on the industrial standard (0 ~ 5V);
- Driving capacity max15ma, linear output;
- The output signal can be directly connected to the AD converter;
- It can be connected with MCU with AD function;
- The module is small and easy to carry and use;
- Module working voltage: DC10V-30V;
- Conversion range: 0~20mA current is converted to 0-5V voltage;
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The Current to Voltage Converter Module is a versatile device designed for converting current signals into voltage signals. It supports a current input range of 0-20mA, converting it into a corresponding voltage output range of 0-5V. This module is ideal for interfacing sensors or devices that output current signals with systems that require voltage signals, providing a convenient solution for signal conversion in various electronic applications. Features : Adopt single-chip microcomputer embedded technology; Realize the conversion of the current on the industrial label (0 ~ 20mA) to the voltage on the industrial standard (0 ~ 5V); Driving capacity max15ma, linear output; The output signal can be directly connected to the AD converter; It can be connected with MCU with AD function; The module is small and easy to carry and use; Module working voltage: DC10V-30V; Conversion range: 0~20mA current is converted to 0-5V voltage; Specifications: Pinouts: VCC: working power supply 10V-30V GND: working power ground CIN: input current 0-20mA GND: input current negative terminal Vout: output voltage 0-5V GND: output voltage ground Lentgh: 29mm Width: 17mm Height: 11mm Package Includes: 1 x Current to Voltage Converter Module 0- 20mA Current Conversion to 0-5V Voltage
