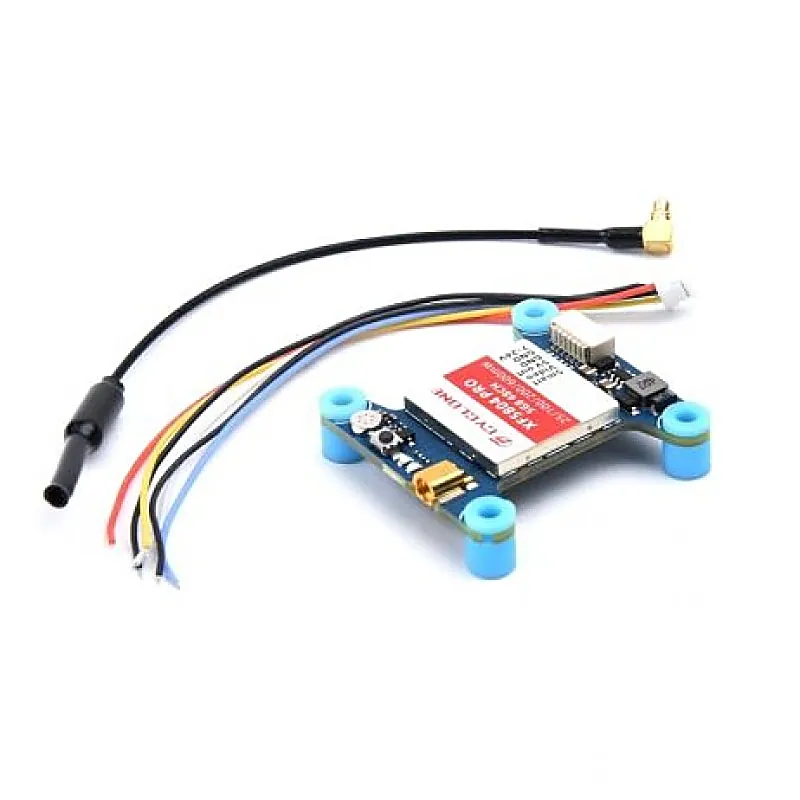

Cyclone XF5804 PRO 5.8G 48CH 25/200/600mw Switchable Transmitter
Cyclone XF5804 PRO 5.8G 48CH 25/200/600mw Switchable Transmitter
This is Cyclone XF5804 PRO 5.8G 48CH 25/200/600mw Switchable Transmitter. XF5804 5.8G 48CH Long Range Tiny little Noise and Compact FPV Transmitter Support Smart Audio OSD Configuration.PIT/25/200/400mW/600mW Switchable VTX FPV Video Transmitter. Installs In Stack with MMCX Antenna for Micro FPV Rac
+ 18% GST (added at checkout)
In stock — 6 units ready
- Output power @transmission distance: 0.5km@25mW
- 1km@200mW
- 2km@600mW
- Power transmission:25mW/200mW/400mW/600mW. PIT maintenance station mode is also supported. Supports the standard 48-channel set;
- Video format: NTSC/PAL
- Suitable for CC3D NAZE32 F3 F4 Flight Controller(Installs In Stack).
- Parameter setting mode: Press / OSD / betaflight
- Antenna Connector: MMCX
- Cable connector: JST.6pin
- Installation hole distance: 30.5mm,
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This is Cyclone XF5804 PRO 5.8G 48CH 25/200/600mw Switchable Transmitter. XF5804 5.8G 48CH Long Range Tiny little Noise and Compact FPV Transmitter Support Smart Audio OSD Configuration.PIT/25/200/400mW/600mW Switchable VTX FPV Video Transmitter. Installs In Stack with MMCX Antenna for Micro FPV Racing Drone Quadcopter. Variable transmit power from 25mW to 600 mW. Use for 25mW for a race and then easily switch to 3=300 mW for freestyle. Features: Output power @transmission distance: 0.5km@25mW 1km@200mW 2km@600mW Power transmission:25mW/200mW/400mW/600mW. PIT maintenance station mode is also supported. Supports the standard 48-channel set; Video format: NTSC/PAL Suitable for CC3D NAZE32 F3 F4 Flight Controller(Installs In Stack). Parameter setting mode: Press / OSD / betaflight Antenna Connector: MMCX Cable connector: JST.6pin Installation hole distance: 30.5mm, Package Includes : 1 x Cyclone XF5804 PRO
