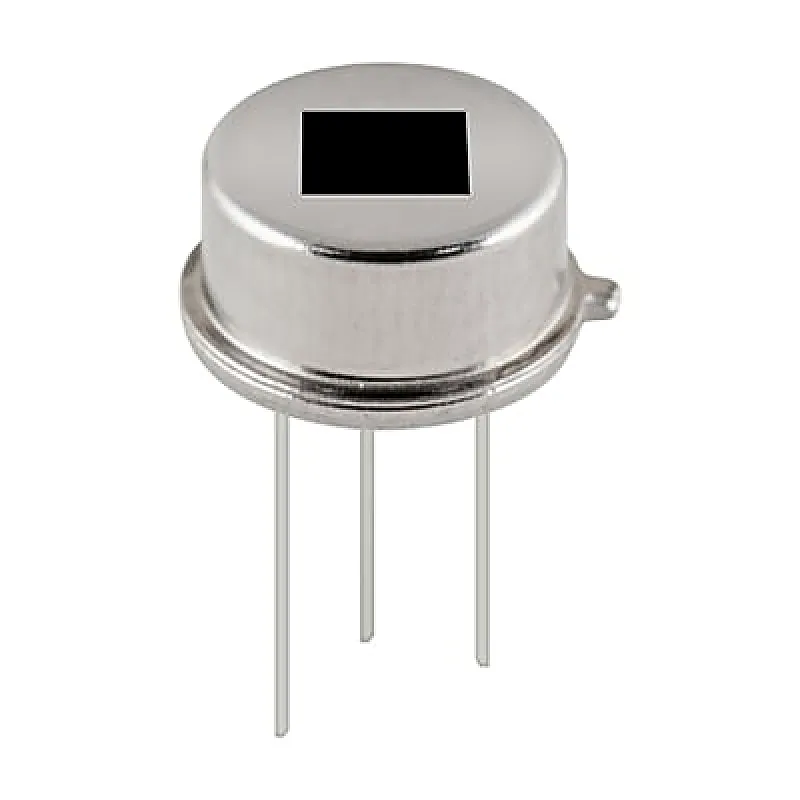

D203S Analog Outdoor Human Motion PIR Sensor

D203S Analog PIR Sensor is the hot selling item in the market. Mostly used for light control lamp switch, general detection angle. This PIR (Passive Infrared Detector) is used to detect moving objects like human movement. All the PIR sensor must work with Fresnel Lens, this version can detect more than 8 meters. Features: Low consumption Custom design is available Higher in cost-performance Package Includes: 1 x D203S Analong PIR Sensor Specifications :- Encapsulation Type TO-5 IR Receiving Electrode 21mm, 2 elements Window Size 34mm Spectral Response 514m Transmittance 75% Output Signal[Vp-p] 3500mV Sensitivity 3300V/W Detectivity (D*) 1.4 108 cmHz1/2/W Noise[Vp-p] <70mV Output Balance <10% Offset Voltage 0.31.2V Supply Voltage 315V DC Operating Temperature -3070C Shipment Weight 0.01 kg Shipment Dimensions 5 3 1 cm
