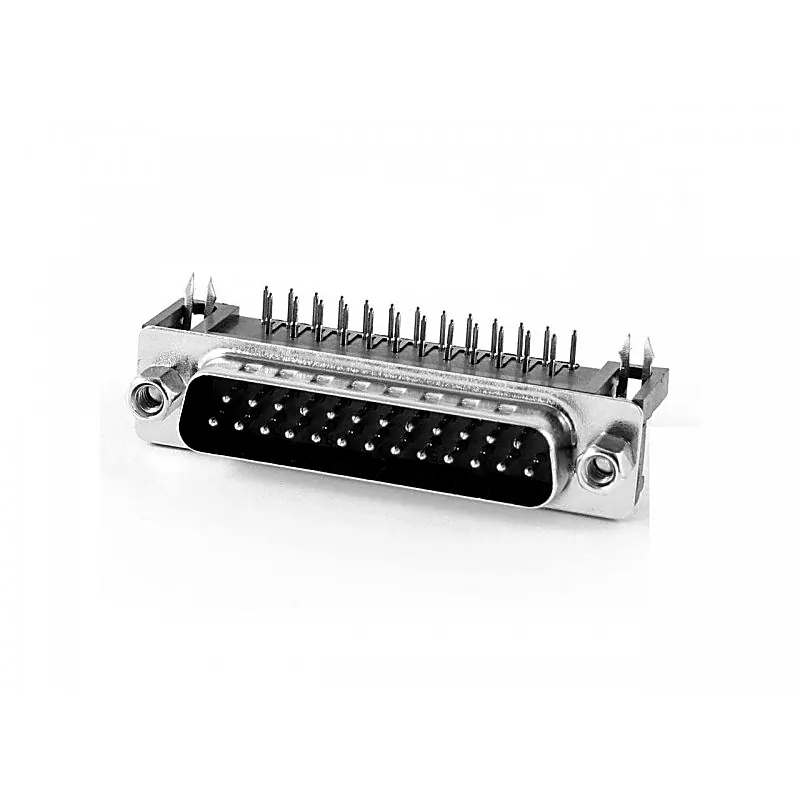

DB25 Male Right Angle Connector - 25 Pin - PCB Mount

This is a DB25 Male type Right Angle connector for PCB Mounting. It can be easily soldered on PCB. The DB25 connector is an analog 25-pin plug of the D-Subminiature connector family. As with the DB9 connector, the DB25 is mainly used for serial connections, allowing for the asynchronous transmission of data as provided by standard RS-232. It is also used for parallel port connections and was originally used to connect printers, and as a result, is sometimes known as a “printer port” (LPT for short). So to avoid confusion, DB25 serial ports on computers generally have male connectors, while parallel port connectors are DB25 female plugs. Features and Specifications:- Connector type: DB25 Body orientation: Right angle Gender: Male Pins: 25 Pin Rows: 2 Rows Serial data transmission Data networks Instrument control Device management Package: PCB Mount Application: Serial data transmission. Data networks. Instrument control. Device management. DIY projects requiring 25 pins inter-device connectivity Package Includes: 1 x DB25 Male Right Angle Connector - PCB Mount
