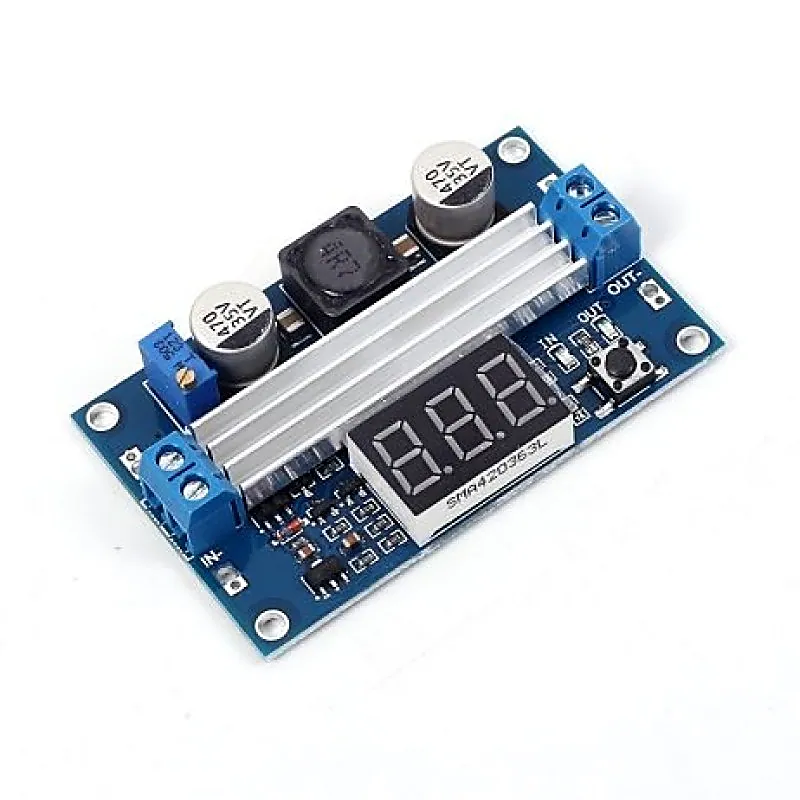

DC-DC High Power Adjustable Step-up Module 3.0-35V to 3.5-35V 100W with Digital Display Voltmeter

The automatic boost module provides a stable power supply. Applicable to an unstable voltage source or voltage conversion. The display part adopts a more advanced microprocessor of the voltmeter. By using the on-resistance of power MOSFET, the current detection resistance is omitted, and the efficiency is improved to the maximum extent, up to 96.4%. Imported high power low resistance MOS transistors, large package, high current, high-efficiency Schottky, ultra-wide, and thick PCB wiring, are the guarantee of high power, high efficiency, and low-temperature rise. High frequency, high capacity and low resistance (low ESR) aluminium electrolytic capacitor for long-life switching power supply make the output ripple lower. Features: High power 100W. Switch display output and input voltage. Adjustable output voltage. Real-time display voltage. Comes with an excellent heat sink Fixed mounting hole. High-quality terminal block Specifications: Input voltage: 3 ~ 35V DC Input current: 9A (max) Output voltage: 3.5 ~ 35V DC (this board is the boost plate, the output voltage to> = input voltage) Output current: 6A (max) Output power: 75W, (when the input and output voltage is greater than 20V can reach 128W) Conversion efficiency: 96.7% (highest) Output ripple: 24mV (TYP) Onboard voltage meter range: 4 ~ 40V, error + -0.1V Short circuit protection: Yes (limit current 14A). Input reverse polarity protection: no (if necessary, enter the string into the high current diode). Module Size: 67x43mm Weight: 34g Package Includes: 1 x DC-DC High Power Adjustable Step-up Module
