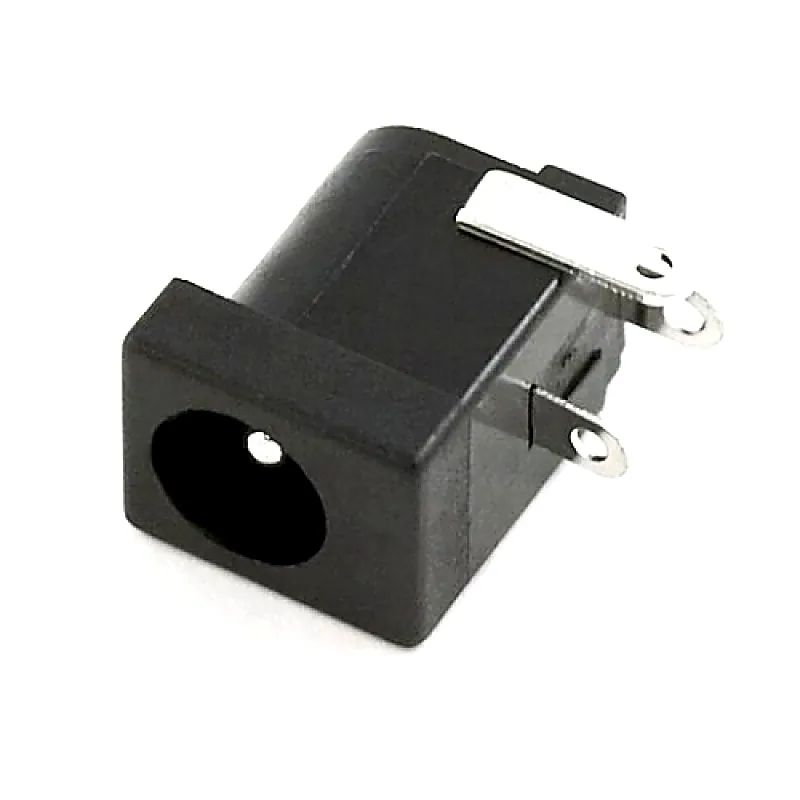

DC-005 DC Power Jack Female Adapter PCB Mount - 2.1 x 5.5mm
DC-005 DC Power Jack Female Adapter PCB Mount - 2.1 x 5.5mm
DC-005 DC Power Jack Female Adapter PCB Mount - 2.1 x 5.5mm is a good quality power connector compatible with all 5.5 male power jack from different sources. It is 2.1 x 5.5mm PCB mountable jack widely used in DIY hobby projects as well as in many robotics application for DC supply voltage connectio
+ 18% GST (added at checkout)
In stock — 1880 units ready
- Temperature: -30C ~ +70C.
- Rated load: up to DC 30V / 1.0A.
- Withstand voltage: AC 500V (50Hz)/min.
- Actuating force: 3N 20N.
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
DC-005 DC Power Jack Female Adapter PCB Mount - 2.1 x 5.5mm is a good quality power connector compatible with all 5.5 male power jack from different sources. It is 2.1 x 5.5mm PCB mountable jack widely used in DIY hobby projects as well as in many robotics application for DC supply voltage connection up to 30 V. Features: Temperature: -30C ~ +70C. Rated load: up to DC 30V / 1.0A. Withstand voltage: AC 500V (50Hz)/min. Actuating force: 3N 20N. Package Includes: 1 x DC-005 5.52.1mm Female DC Power Jack Supply Socket. Specifications :- Plug Type 5.5 x 2.1 mm No. of Pin 3 Operating Temperature () -30 ~ +70 Rated load DC 30V / 1.0A Contact resistance 0.03 Insulation Resistance (M) 100 Center Pole Diameter (mm ) 2.1 Compatible with 5.5 mm jack
