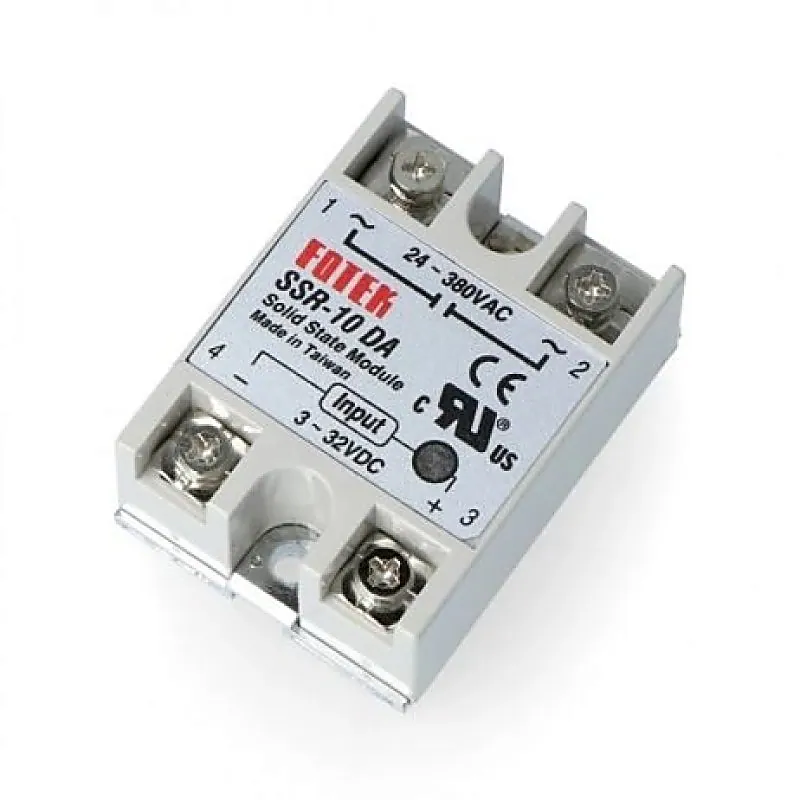

DC To AC SSR-10DA Solid State Relay Module 3-32 VDC /24-380VAC 10A

This is DC To AC SSR-10DA Solid State Relay Module 3-32VDC/24-380VAC 10A. A solid-state relay (SSR) allows you to control high-current AC loads from lower voltage DC control circuitry. Solid-state relays have several advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out. This particular SSR can switch current loads of up to 10A with a 3-32V DC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals. Features : Long service life and high reliability Reduced electromagnetic interference Highly reliable, compact size designed to offer users maximum simplicity. Package includes : 1 x DC To AC SSR-10DA Solid State Relay Module 3-32 VDC /24-380VAC 10A Specifications :- Model SSR-10DA Rated Load Current (A) 10 Trigger Voltage (VDC) 3-32 Switching Voltage (VAC) 24-380@10A Color Light Gray Length (mm) 60 Width (mm) 45 Height (mm) 24 Weight (gm) 92
