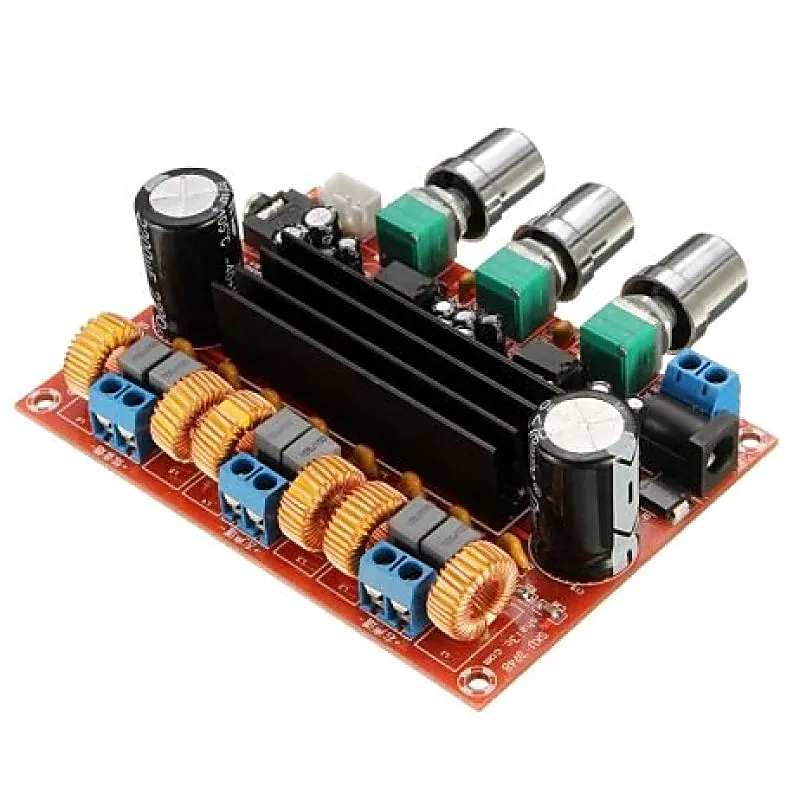

DC12-24V TPA3116D2 2.1 Channel Digital Subwoofer Power Amplifier Board

DC12-24V TPA3116D2 2.1 Channel Digital Subwoofer Power Amplifier Board adopts two high-quality TPA3116D2 digital amplifier chips. Sound quality is very good, high efficiency and amplifying power. 50W x 2+100W 2.1 channels (left/right channel and subwoofer channel), high efficiency and low-heat. Users can adjust the volume by themselves easily. It is p owered by DC 12-24V, wide input voltage. Features: Adopts two high-quality TPA3116D2 digital amplifier chips. Good sound quality, high efficient device and power amplifying feature. 50W x 2+100W 2.1 channels(left/right channel and subwoofer channel), high efficiency and low-heat. Powered by DC 12-24V, wide input voltage. User can adjust the volume by themselves easily. Applicable speaker impedance: 4-8 ohm. Just connect the power supply and loudspeaker box, enjoy pure digital music!. Package includes: 1 x DC12-24V TPA3116D2 2.1 Channel Digital Subwoofer Power Amplifier Board Specifications: Supply Voltage DC 12-24V Main Chip TPA3116 x 2 Channel Type 3 Channels(Left Channel, Right Channel, Subwoofer) Output Power 50W x 2 + 100W x 1 Subwoofer Output Match 4-8 ohm Audio Output Terminals Frequency Response Range 14-100KHz SNR 100dB Switching Frequency 1.2MHz PCB Board Size (LxWxH) mm 100 x 70 x 30 Weight 113g
