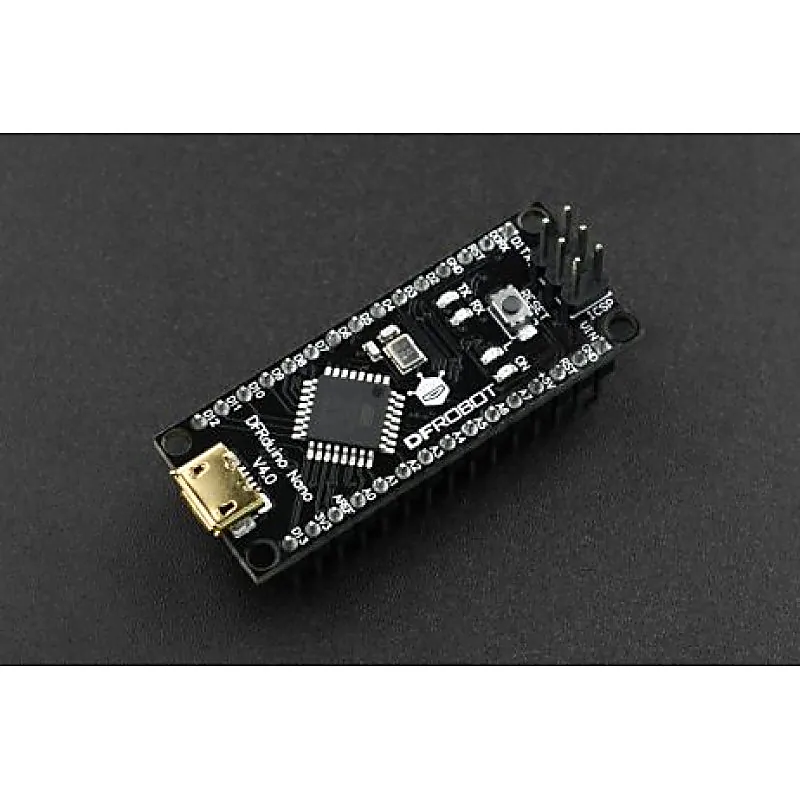

DFRduino Nano (Arduino Nano Compatible)
DFRduino Nano (Arduino Nano Compatible)
The DFRduino Nano USB Microcontroller V3.1 (ATMega 328) is a breadboard-ready version of the Arduino mini with integrated USB. The Arduino Nano has everything that the Diecimila has (electronically) with more analog input pins and an on-board +5V AREF jumper. The Arduino Nano automatically senses an
+ 18% GST (added at checkout)
In stock — 2 units ready
- Easy to use
- Low power consumption
- Plug-and-play device
- It is full compatibility with Arduino
- Compact size
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The DFRduino Nano USB Microcontroller V3.1 (ATMega 328) is a breadboard-ready version of the Arduino mini with integrated USB. The Arduino Nano has everything that the Diecimila has (electronically) with more analog input pins and an on-board +5V AREF jumper. The Arduino Nano automatically senses and switches to the higher power supply, so there is no need for a power select jumper. The nanos pin layout works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other). The DFRobot DFRduino Nano USB Microcontroller V3.1 (ATMega 328) can be powered via the mini-B USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source. Features: Easy to use Low power consumption Plug-and-play device It is full compatibility with Arduino Compact size Packages Includes: 1 x DFRduino Nano (Arduino Nano Compatible)
